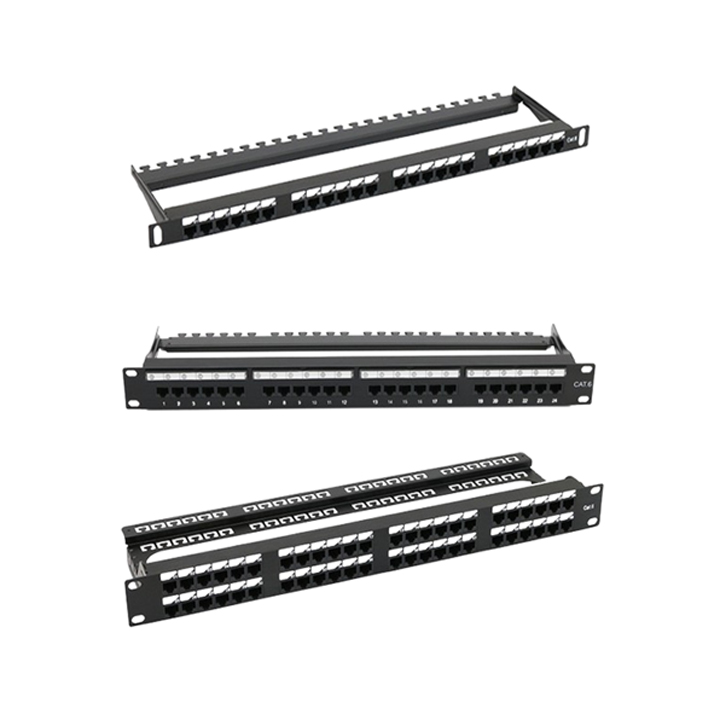

The 180° Rack Mountable 19″ UTP PCB Patch Panel is a product that is aimed at easing structured cabling within a professional setting. It has a modular RJ45 socket block and gold-plated contacts, which ensure good conductivity and durability.
Being an established rack mountable supplier in the UAE, our pre-configured patch panels are provided to meet international requirements, ensuring professional-grade implementation within enterprise and data centre networks.
Product Features
- Multiple versions: 24-port (0.5U/1U) and 48-port (2U)
- Straight-through PCB design: 180° layout supports neat cable routing
- IDC termination: 110 punch-down style for consistent connections
- High-quality contacts: 50μ” gold plating extends service life
- Rear cable bar: Adds strain relief for organised installation
- Numbered labelling: Front and rear identification for port clarity
- Sturdy frame: SPCC cold-rolled steel structure ensures durability
- Standards compliance: ISO/IEC 11801, TIA/EIA-568, EN 50173, RoHS
Specifications
| Parameter | Specification |
| Current Rating | 1.5 A |
| Insulation Resistance | ≥ 500 MΩ |
| Contact Resistance | ≤ 10 mΩ |
| DC Resistance | ≤ 0.1 Ω |
| Voltage Endurance | DC 1000 V / AC 750 V for 1 min |
| Plug Insertion Life | ≥ 750 cycles |
| Retention Strength | 7.7 kg between the jack and plug |
| Durability | 200 termination cycles |
| Operating Temperature | -10 °C to +60 °C |
| Operating Humidity | 10% – 90% RH |
| Storage Temperature | -40 °C to +68 °C |
Applications
Rack mountable patch panel solutions are widely deployed in:
- Data centres: Structured terminations for core and distribution cabling
- Telecom rooms: Professional rack-level organisation
- Enterprise networks: Precise termination for office infrastructure
- Server racks: Efficient management of high-density systems
- Security systems: Dependable connectivity for surveillance integration
Available Configurations
- 24-port: 0.5U and 1U rack sizes
- 48-port: 2U high-density option
- Tool-ready IDC punch-down blocks
- Rear cable support bar for strain relief
- Black powder-coated SPCC steel frame
Specifications may vary by configuration. Request a quotation for tailored details.
