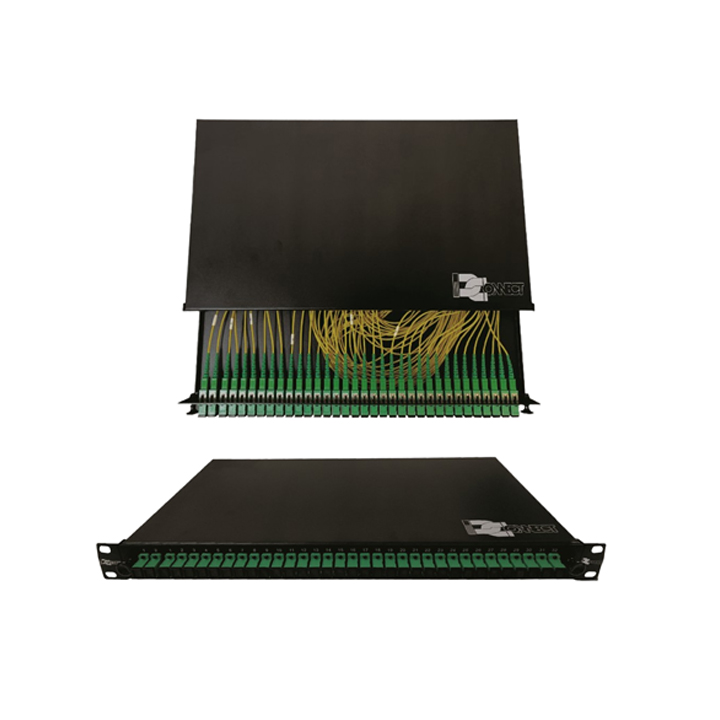

PLC splitter and SC/APC solutions provide a 19-inch rack optical distribution that is compact, accurate, and reliable. They have 2×32 and pre-installed 2×8 splitters, and pre-installed SC/APC adapters that make them support both low insertion loss and stable return loss. Their metal casing with powder coating, extensive temperature span, and structured rear cable control make it fit the rugged telecom and corporate fibre niche.
Being a reputed PLC splitter and SC/APC supplier in the UAE, we guarantee fully tested, standards-compliant panels, suitable for global telecom and enterprise deployments that require speed and reliability.
Product Features
- 1U rack-mount fixed panel for 19-inch racks
- Configurable with 2×8 and 2×32 PLC splitters
- Stable performance with low insertion loss and high return loss
- SC/APC simplex adapters pre-installed for faster integration
- Rugged, powder-coated enclosure for durability
- Wide operating range: –40 °C to +85 °C
- Rear cable management for neat routing
- Over 1,000 mating cycles for long service life
- Standards compliance: IEC, ITU-T, ISO 9001, RoHS
Specifications
| Component | Details |
| Panel Design | 1U rack-mount, fixed |
| Splitter Options | 2×8, 2×32 |
| Connector Type | SC/APC Simplex |
| Fibre Type | G.657.A1 / G.652.D |
| Insertion Loss (Typical) | ≤ 10.5 dB (2×8), ≤ 17.0 dB (2×32) |
| Return Loss | ≥ 60 dB |
| Uniformity | ≤ 1.0 dB (2×8), ≤ 2.0 dB (2×32) |
| Polarisation Dependent Loss | ≤ 0.2 dB (2×8), ≤ 0.3 dB (2×32) |
| Operating Temperature | –40 °C to +85 °C |
| Compliance | IEC, ITU-T, ISO 9001, RoHS |
Applications
DConnect PLC splitter and SC/APC solutions are trusted in:
- FTTH networks: Efficient last-mile optical distribution
- PON/GPON/EPON systems: Passive optical access
- CATV distribution: Digital TV signal branching
- Data centres: High-density optical management
- Enterprise and campus fibre backbones
- Utilities and smart grid fibre infrastructure
Available Configurations
- Rack size: 1U fixed panel
- Splitter options: 2×8 and 2×32
- Connectors: SC/APC simplex
- Fibre types: G.657.A1 / G.652.D
- Colour: Standard black powder-coated finish
- Accessories: Rear cable management tray, installation kit
Specifications and configurations may vary by model. Request a quotation for precise details.
