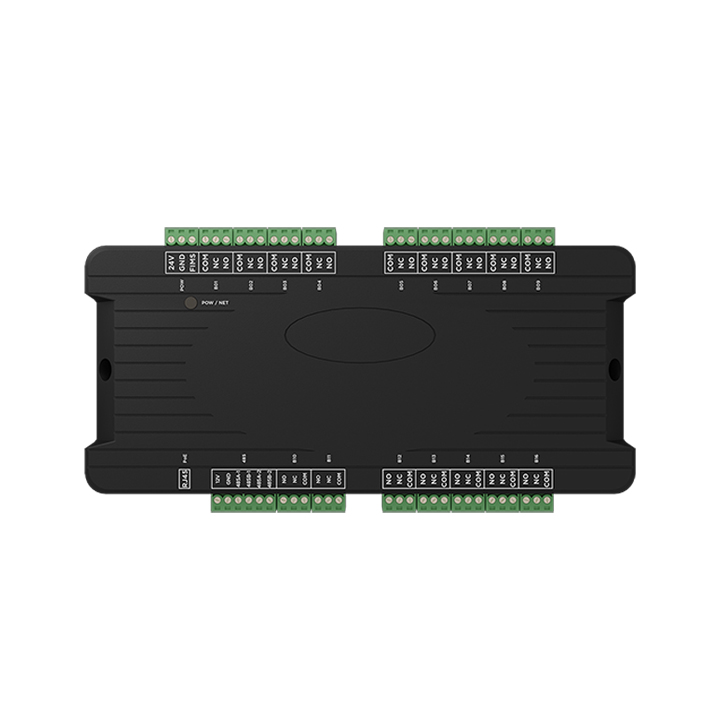

EVRC-IP – Elevator Control Module

EVRC-IP is an intercom-lift controller that offers occupants or tenants a better living experience within a building. With the EVRC-IP system, the intercom systems within individual apartments or spaces within a building can be connected to the lift management system.

This allows residents to call the lift to their floor from their intercoms or through a mobile app. It also allows residents to let their guests in and bring them upto their floor through a single interface.

Product Features

  • High-rise building support: Supports buildings with up to 16 floors
  • Wide operating temperature range: Works reliably in temperatures from –40°C to +70°C

Specifications



Category Specification
Rated Voltage POE support
Rated Power 7 W
Standby Power 1 W
Working Temperature -40 – +70 C
Storage Relative Humidity 20% – 93%
Maximum Modules per System 98
Box Dimensions 235 × 142 × 57 mm
Gross Weight 0.61 kg
