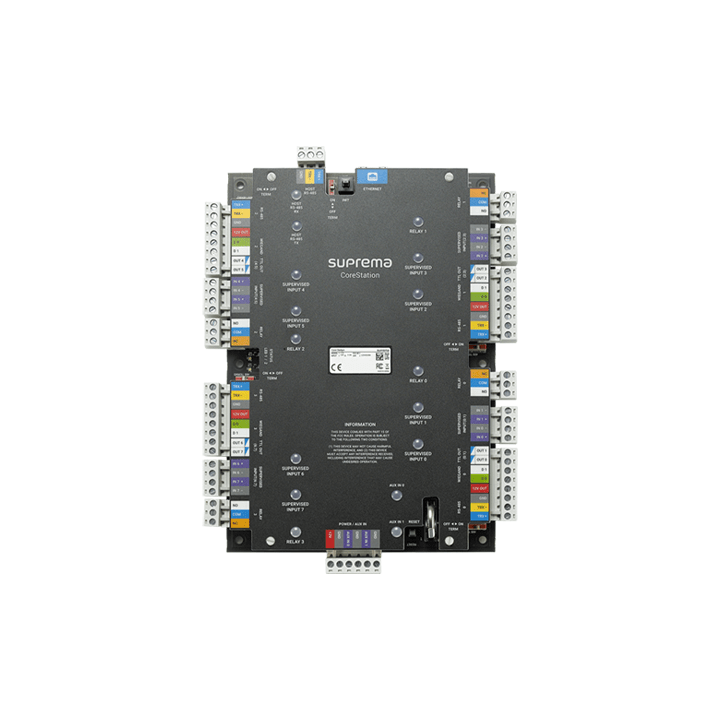

CoreStation

Corestation offers centralised storage of biometric and access group data, catering to enterprises with its massive user capacity of 500,000 users and support for up to 1 million fingerprint templates.
The in-built technology has high-precision fingerprint-matching functionality that can even reach 400,000 matches per second to serve fast and reliable access. It is also supported by the OSDP V2 protocol, which allows secure communication between various access control devices. It has been specifically designed to work with the BIOSTAR 2 platform, which enhances compatibility with existing systems and simplifies access control functions.

Product Features

  • Centralized storage of biometric and access group data
  • Enterprise-level user capacity – 500,000 users (1 million fingerprint template)
  • Hight-speed fingerprint matching (Max 400,000 match/sec)
    OSDP V2 protocol supported

BIOSTAR 2 Compatible
Product Highlights
CPU: 1.4Ghz Octa Core
Memory : 1GB RAM 8GB Flash
Log Capacity : 5,000,000
User Capacity : 500,000 (1:1), 100,000 (1:N)
Template Capacity : 1,000,000 (1:1) , 200,000 (1:N)
Interface: TCP/IP, Wiegand (4ch input/output), USB (Host & Slave) RS485 (5ch) , 8x TTL , 4 x Relay
