UPS Solutions in the UAE
A UPS should not be selected by capacity alone.
Two systems with the same kVA rating can perform very differently once they are installed. The protected load, required runtime, operating environment, battery configuration, redundancy level and future expansion plans all influence whether the system will deliver the continuity expected from it.
This becomes especially important in the UAE, where UPS equipment may operate in plant rooms, server rooms, data centres, industrial sites, commercial buildings and outdoor infrastructure environments with very different cooling, space and operating conditions.
What Is a Complete UPS Solution?
A UPS, or uninterruptible power supply, provides temporary backup power when the incoming electrical supply fails or becomes unstable. Depending on the selected architecture, it can also help regulate voltage and protect sensitive equipment from disturbances in the incoming supply.
For a small application, the requirement may be limited to a standalone UPS protecting a workstation, network device or security system.
For larger projects, the UPS is only one part of the solution.
A complete UPS requirement may also involve:
|
|
The correct configuration depends on what the system must protect and how the facility is expected to operate during a power interruption.
Why Site Conditions Matter in the UAE
UPS specifications should be developed around the conditions in which the equipment will operate, not only the ratings shown in a product schedule.
01
Temperature and battery performance
Battery performance and service life are influenced by operating temperature.
If a UPS or battery system is installed in a poorly ventilated or inadequately cooled room, its performance may differ from the expectations based on standard test conditions. The manufacturer’s specified operating range, ventilation requirements and recommended battery conditions should therefore be considered during planning.
This is particularly important where equipment is installed in plant rooms, outdoor cabinets, service areas or other locations exposed to elevated temperatures.
02
Space, access and floor loading
The selected equipment must physically fit the site.
For larger systems, project teams should confirm:
|
|
These details should be checked before the system is delivered, not discovered during installation.
03
Generator-backed facilities
Where standby generation is available, the UPS may need to support the protected load during generator starting, transfer and stabilisation.
The required runtime, UPS input characteristics and generator compatibility should be reviewed with the project’s electrical consultant, contractor and equipment manufacturers.
A longer battery runtime is not automatically better if the facility already has reliable standby generation. The correct requirement depends on the operating sequence and the continuity expected from the protected load.
04
Indoor and outdoor deployment
Not every UPS installation is located in a controlled server room.
Industrial, telecommunications, transport and surveillance projects may require UPS and battery systems to be housed in protected cabinets or integrated into outdoor infrastructure.
The enclosure, ingress-protection level, cooling, ventilation, monitoring and environmental rating should therefore be matched to the installation location.
UPS Systems Available from ScreenCheck
ScreenCheck’s portfolio supports requirements ranging from distributed equipment protection to large data-centre and infrastructure applications.
Line-interactive UPS
A line-interactive UPS provides battery backup and uses automatic voltage regulation to correct certain variations in the incoming supply without immediately switching to battery operation.
It can be suitable for:
|
|
Available formats and capacities vary by model.
Online double-conversion UPS
An online double-conversion UPS continuously converts incoming AC power to DC and then back to AC before supplying the connected load.
This architecture provides conditioned output without a transfer delay when the incoming supply fails, making it relevant for more sensitive or business-critical equipment.
Typical applications include:
|
|
Rack-mount UPS
Rack-mount UPS systems are designed for installation within standard equipment racks.
They are commonly considered for data cabinets, server rooms, communications racks and distributed IT environments where space, cable management and compatibility with existing racks are important.
ScreenCheck’s power-management portfolio includes rack-mount systems across a range of capacities for smaller and larger protected loads.

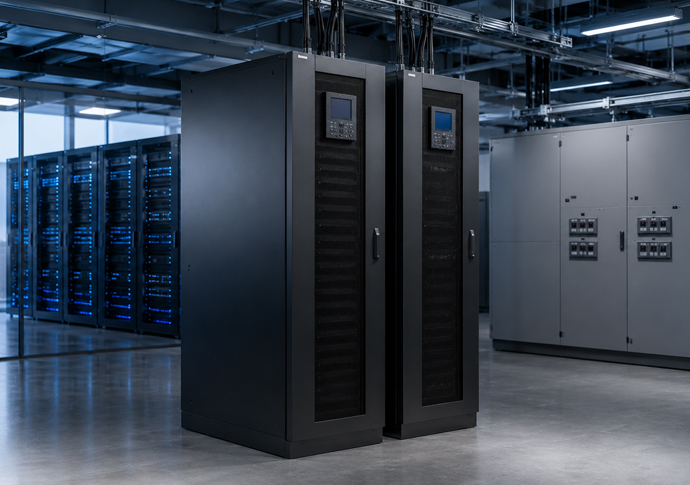

Three-phase tower UPS
Three-phase tower UPS systems provide higher-capacity protection in a standalone floor-mounted format.
They may be suitable for enterprise facilities, industrial systems, commercial infrastructure and larger technical environments where rack-mounted equipment is not the preferred arrangement.
Selected models can support monitoring interfaces, maintenance bypass and parallel operation, depending on the product and configuration.
Modular UPS
A modular UPS uses multiple power modules within a common frame.
Capacity can be increased by adding modules, subject to the limits of the selected system. This can make modular UPS systems suitable for facilities where future load growth, phased investment or redundancy is an important consideration.
ScreenCheck’s portfolio includes floor-mounted modular UPS systems for medium- and large-scale data-centre and infrastructure requirements.
UPS and battery cabinets
UPS and battery cabinets provide protected housing for power and battery equipment.
Available configurations may include indoor or outdoor protection, ventilation, monitoring provisions and accessories selected according to the application.
Smart PDUs and busway distribution
UPS protection needs to be supported by appropriate downstream power distribution.
Smart PDUs can provide rack-level monitoring, metering and, depending on the model, remote outlet control. Busway systems can provide flexible power distribution for data-centre and high-density environments.
Including distribution requirements during the design stage helps avoid treating the UPS as an isolated piece of equipment.
How Line-Interactive, Online and Modular UPS Systems Differ
The three terms describe different aspects of UPS design.
Line-interactive UPS systems are generally suited to less sensitive distributed equipment where voltage regulation and battery backup are required.
Online double-conversion UPS systems provide continuous conditioned output and are normally considered for more sensitive or critical loads.
Modular UPS systems are designed around scalability and module-based capacity. A modular system may also use online double-conversion technology.
The correct choice should therefore be based on:
|
|
There is no single UPS architecture that is right for every application.
Key Factors When Selecting a UPS Solution
Protected load
The first step is to identify what the UPS will protect.
This should include the actual connected equipment, its operating load, power factor, start-up characteristics and the consequences of losing power to it.
Sizing only from the sum of maximum nameplate ratings may result in a system that does not reflect normal operating conditions. At the same time, underestimating the load can leave insufficient capacity.
The final sizing should be reviewed by the relevant project engineer or consultant.
Required runtime
Runtime is the period for which the UPS and batteries must support the connected load.
The requirement may be:
|
Battery quantities and cabinet requirements should be selected against the agreed load and runtime, using the manufacturer’s approved calculation methods.
Redundancy
Not every facility needs the same level of redundancy.
A small communications rack may require a straightforward standalone system. A critical data centre or process application may require parallel units, module redundancy or an alternative power path.
The redundancy strategy should be based on the importance of the load, the required availability and the consequences of system maintenance or failure.
Future growth
A UPS should not be oversized without reason, but it should also not become obsolete as soon as the facility expands.
Where future demand is expected, project teams should consider:
|
This allows growth to be planned rather than improvised.
Monitoring and communication
Monitoring can help operators view system status, battery condition, alarms and load information.
Depending on the selected UPS, PDU and accessories, available interfaces may include SNMP, Modbus, web-based monitoring or connections to compatible BMS and DCIM platforms.
The required protocols should be confirmed during specification.
Where UPS Solutions Are Used
UPS systems help maintain power to servers, storage, networking and supporting IT infrastructure during interruptions and unstable supply conditions. Larger environments may also require modular UPS systems, battery cabinets, smart PDUs and busway distribution.
Corporate networks, communications rooms and business-critical IT applications rely on stable power to avoid interruptions, data loss and unplanned shutdowns.
Healthcare facilities may require UPS protection for selected medical, diagnostic, IT and communications equipment. The suitability of a UPS for a medical application must be confirmed against the equipment manufacturer’s requirements and the project’s electrical and regulatory specifications.
Industrial facilities can use UPS systems to support PLCs, control systems, instrumentation, industrial computers and communication equipment where an interruption could affect the process or the ability to shut it down safely.
Access control, video surveillance, intercom, public-address, alarm and network systems may require backup power to remain available when the incoming supply is interrupted.
Commercial properties may use UPS systems for server rooms, communications, building-management interfaces, security systems and other selected operational loads.
Suitable UPS, battery and enclosure configurations can support surveillance, telecommunications, transport, industrial and smart-infrastructure equipment installed in remote or exposed environments.
How ScreenCheck Supports UPS Projects
01
Requirement review
ScreenCheck can support customers and project partners by reviewing the application and identifying the product information needed for selection.
Useful project inputs include:
|
|
02
Product selection support
Based on the supplied requirement, ScreenCheck can help identify suitable options from its UPS and power-management portfolio.
Final design responsibility, electrical calculations and system approval should remain with the appointed consultant, contractor or qualified project engineer unless otherwise agreed within the project scope.
03
Site assessment and project consultancy
Where required, ScreenCheck can provide site assessment and project consultancy to help clarify physical conditions, product suitability and deployment considerations.
The scope should be agreed before the assessment begins.
04
Project and phased supply
ScreenCheck supports individual, bulk and phased UPS requirements for system-integrator, contractor and enterprise projects.
Supply can be coordinated against project stages, subject to product availability and the confirmed delivery programme.
05
Technical and after-sales support
Access to technical information, product assistance, warranty support and replacement consumables or accessories can be important throughout the working life of the system.
The available support and warranty terms should be confirmed for the selected brand and product.
Share Your UPS Project Requirement
Send us your load requirement, required runtime, installation environment, quantity and project programme. Our team will help you identify suitable UPS and power-management products for further technical review.
Why Work with ScreenCheck?
ScreenCheck Middle East supports commercial and project requirements through a broad portfolio of UPS, data-centre and power-management products.
Customers and project partners can benefit from:
|
|
The objective is not simply to supply a UPS with the correct rating on paper. It is to help project teams select products that suit the load, the site, the operational requirement and the long-term plans for the facility.

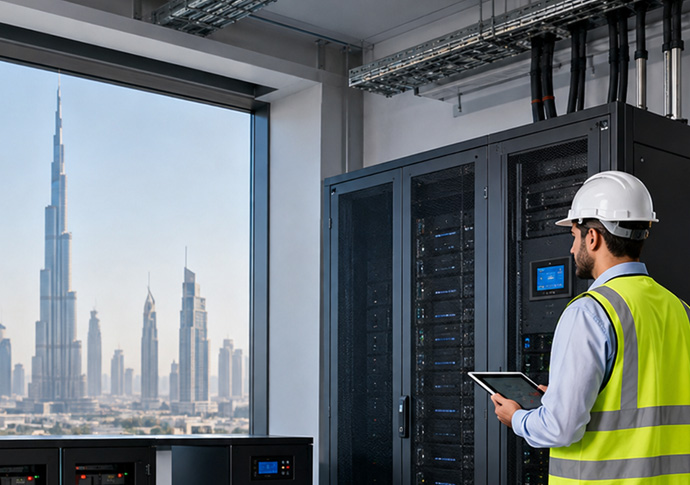

Plan a More Reliable UPS Solution for Your UAE Project
A UPS is normally noticed only when the incoming supply is interrupted.
By that point, there is no opportunity to correct an undersized battery, an unsuitable installation environment or a redundancy plan that does not match the importance of the load.
Those decisions need to be made earlier.
A well-planned UPS solution should provide the required continuity, remain practical to operate and maintain, and allow the facility to grow without unnecessary replacement or redesign.
ScreenCheck supplies UPS and related power-management products for project requirements across Dubai, Abu Dhabi, Sharjah and the wider UAE.
Frequently Asked Questions
A UPS solution provides temporary backup power and, depending on the selected architecture, conditioned output when the incoming electrical supply fails or becomes unstable. A project solution may also include batteries, cabinets, monitoring and power-distribution equipment.
A line-interactive UPS regulates certain voltage variations and transfers to the battery during a supply failure. An online double-conversion UPS continuously supplies the load through its conversion system and does not require a transfer to battery-backed output when the incoming supply fails.
Yes. ScreenCheck’s portfolio includes floor-mounted modular UPS systems for medium- and large-scale data-centre and infrastructure requirements.
Capacity is selected according to the connected load, power factor, start-up characteristics, required headroom and expected future growth. Final sizing should be completed or approved by a qualified project engineer or consultant.
Yes. Battery performance and service life can be affected by sustained operation outside the manufacturer’s recommended temperature range. Ventilation, cooling and installation conditions should therefore be considered during planning.
UPS systems are frequently used in generator-backed facilities, but compatibility depends on the UPS, generator, load and electrical design. The arrangement should be reviewed by the project’s electrical consultant, contractor and equipment manufacturers.
Yes. ScreenCheck’s portfolio includes UPS and battery cabinets, smart PDUs, basic PDUs and busway power-distribution products.
Yes. ScreenCheck can support individual, bulk and phased requirements, subject to product selection, availability, quantities and the agreed delivery programme.
ScreenCheck supports customers and projects across the UAE, including Dubai, Abu Dhabi, Sharjah and the Northern Emirates.
