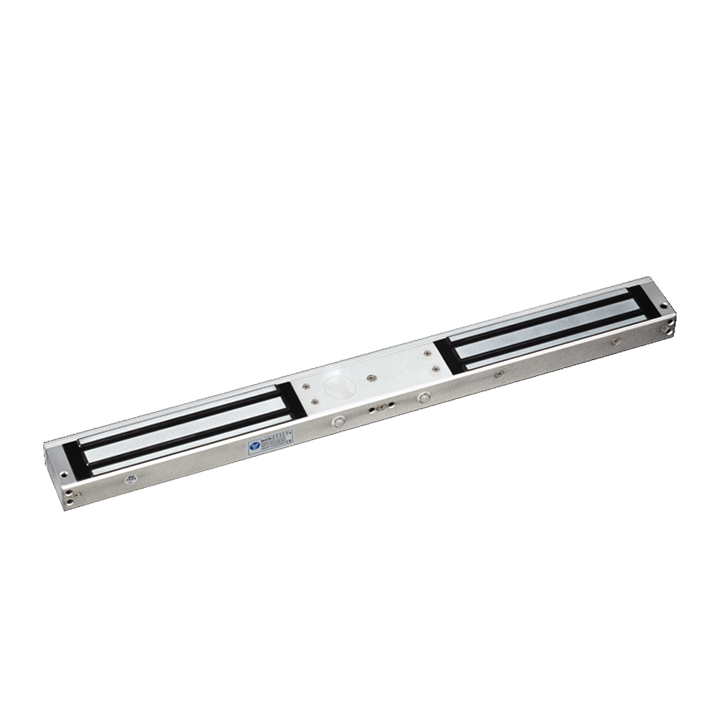

Double Door Magnetic Lock 600lbs

Double Door – 600Lbsx2

The EN-280SD-LED-DS is made to secure double doors with a combined holding force of 600lbs per door. It is ideal for glass, wooden, fireproof, and metal doors.

Get a Quote
Categories: ,

Product Features

  • Size: 500Lx49Wx28H(mm)
  • Holding force: 280kgx2(600Lbsx2)
  • Voltage: DC12V or DC24V
  • Current: 12V/500mA±10% x2; 24V/250mA±10% x2
  • Suitable for: Wooden door/Glass door; Metal door/Fireproof door
  • Signal: Lock signal & door signal
  • LED: Red shows locked; Green shows unlocked
  • Signal Output: Door/Lock signal (NO/NC/COM)
  • Feature: Fail safe
  • Weight: 4.2kg
