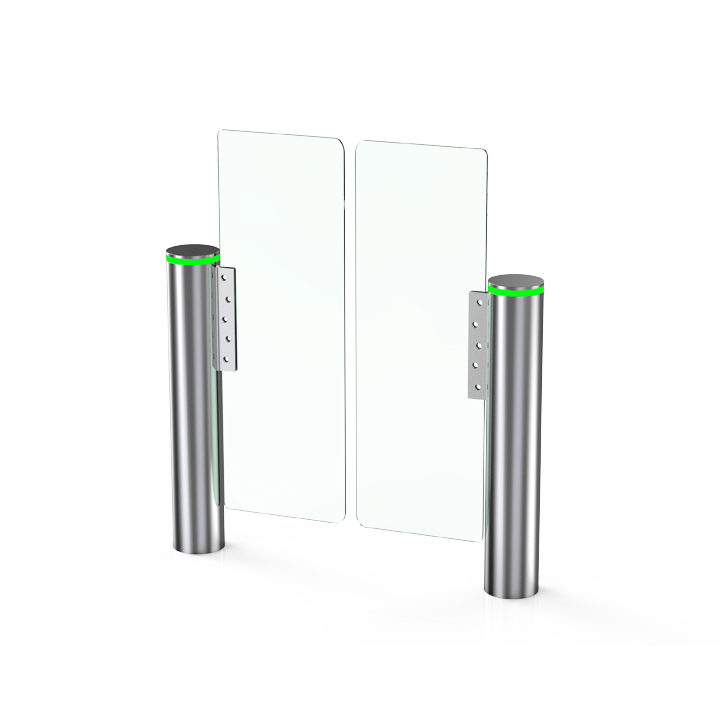

Daosafe Swing model DS 8000

The Daosafe DS 8000 Swing Turnstile is a high-performing and highly durable solution with a sleek brushed stainless steel body. Designed for versatile environments, this turnstile is well-suited for areas with high pedestrian traffic. Integration is a standout feature of the DS 8000. The DS 8000 comes with a standard relay signal that makes it compatible with the incorporation of various third-party access control systems such as RFID devices, fingerprint readers, and biometric systems.

The DS 8000 is constructed from high-quality material, which mitigates wear and tear problems. It also features a weather-resistant design, making it ideal for both indoor and outdoor settings. It is a perfect solution for commercial and public premises that require durable products for high-traffic situations.

Features

  • Long-life performance & high operation dependability
  • Anti-intrusion, Anti-reverse & Anti-trailing functions
  • Single directional or Bi-directional options
  • Smooth, noise-free running system
  • Automatic reset functions
  • LED Indicator

Specification

Model No.: DS8000

Type: Cylinder swing turnstile

Framework Material: 304 Stainless steels+ Plexiglas arm

Arm material: Plexiglas-transparency

Dimension: 168 * 980mm

Passage Width: 600mm (standard), 900mm (maximum)

Net Weight: 60kg/pcs

Passing Direction: Single directional / Bi-directional

MCBF: 5 million

Power Supply: AC220V/110V, 50/60Hz

Operation Voltage: 24V DC

Power Consumption: 40W

Operation Temperature: -15 °C – 60 °C

Operation Humidity: 0 – 95% (No freeze)

Working Environment: Indoor / Outdoor

Flow Rate: 30 people per minute

LED Indicator: Yes

Infrared Sensor: No

Emergency: Automatic arm open when power off

Communication: Dry contact, Relay signal, RS485
