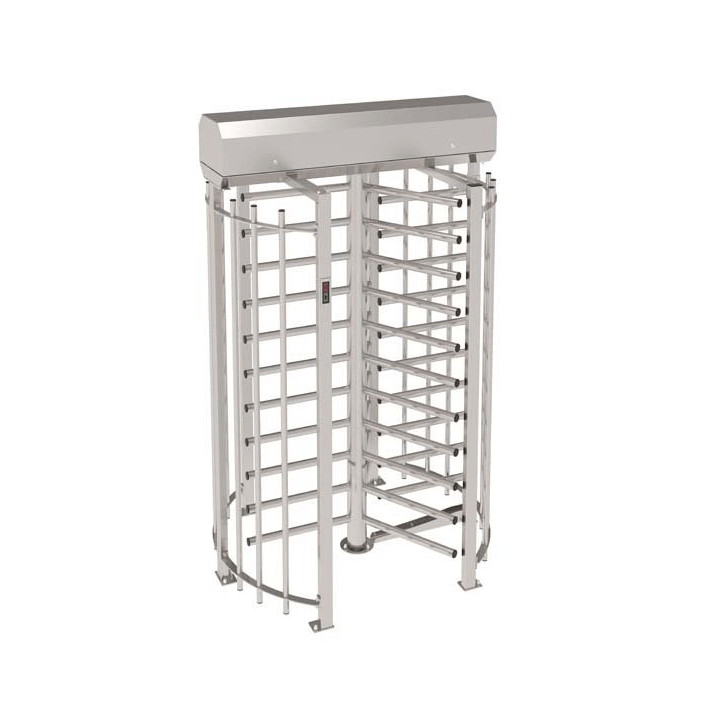

TiSO SESAME – Full Height Turnstile Gate

The TiSO SESAME is a robust, single-lane, full-height turnstile gate engineered to provide uncompromising vandal-proof security for a wide range of applications, including stadiums, factories, parks, and premises with the highest security requirements. Welded construction is its main feature, endowing the gate with super strength and sturdiness, making the pedestrian access control system the most effective.

Also, the incorporation of an additional assembly modification function for the automatic barrier gate allows for quick shipment and easy setup, improving its flexibility. Whether protecting high-traffic areas or securing vital points of access, TiSO SESAME offers the most needed robust features, reliable operations, and ease of usage consistency, providing enough reasons to opt for it. Hence, it is the first choice for organisations that require the highest levels of security and safety parameters.

Product Features

Advantages

  • Electromechnical drive (motorized as an option); Bi-directional;
  • Variety of metal and metal treatment types;
  • Three arms (angle between bars 120?) and four arms (angle between bars 90?) modifications;
  • High quality at a cost effective price;
  • Integration with any type of access control and ID systems;
  • Low power consumption;
  • Whisper quiet, low noise operation;
  • Possibility of customization;
  • Wide range of accessories;
  • Complete supply set as a standard; Fial safe / fail secure.

Specifications

Unit dimensions (WxLxH), mm : Sesame-X – 1254x1300x2300, Sesame-Y – 1420x1158x2300
Crossing capacity, pers/min  : 20
Number of wings (angle) : X type – 4 (90°)
Passage width, mm :Sesame-X – 510,Sesame-Y – 650
Weight, kg (not more) : Sesame-X – 375, Sesame-Y – 375
Standart Mechanism: Electro-mechanical
Standard housing : Brushed SS AISI 304
Available housing : Brushed SS AISI 316 , Polished SS AISI 304,Polished SS AISI 316,Powder coated RAL
Top lid : Stainless steel top , Solid glass top
Voltage : from the AC (100–240) V, 50/60 Hz , from a DC source 12 V
