TR – D2183IR6 v2 2.7 – 13.5

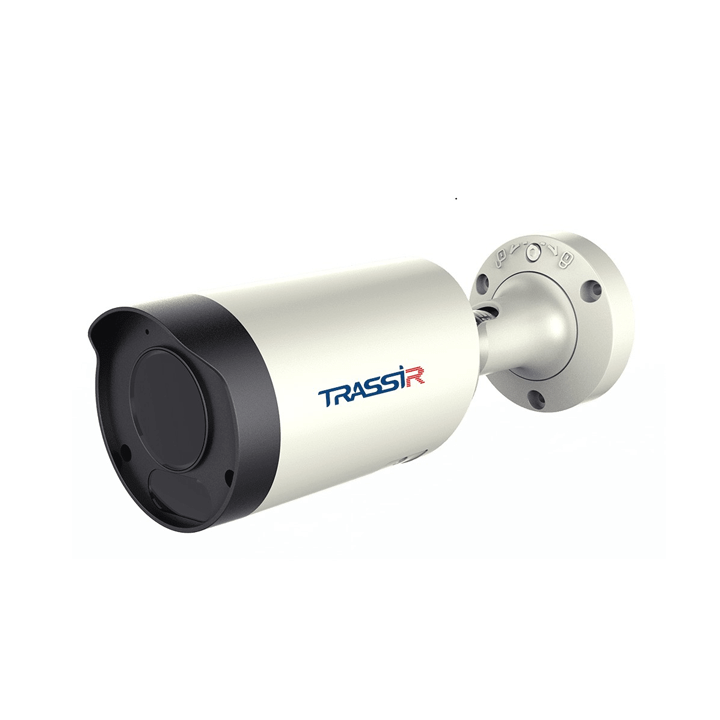

The TR-D2183IR6 V2 is an 8MP (3840 x 2160) IP outdoor camera that offers high performance in rugged environments. Designed with a tough exterior shell and an IP67 rating, the product is dust-tight and highly resistant to moisture, making it perfect for any ambient condition. The camera also boasts an amazing temperature range of -40°C to +60°C, which makes it workable even in extreme climatic regions. Moreover, TR-D2183IR6 V2 provides advanced lightning protection with TVS 2000V (high-voltage suppressor up to 2000V) shielding against power surges, resulting in continuous operation and prolonged equipment life.

Furthermore, this device has built-in IR illumination that covers distances up to 60 metres, allowing you to see objects even in low-light conditions. It has a varifocal lens (2.7 – 13.5mm), referred to as a zoom lens, offering views from wide angles, such as a horizontal field of view between 113° and 31°and a vertical field of view ranging from 58°17°. It uses an aperture of f/1.3, which can capture clear images at night or in dark areas and display them on screens. This unit is two-way enabled because it has audio input/output ports together with its mic system. Moreover, this model supports alarm input/output, hence more sensor connections and PTZ cameras guaranteeing complete security coverage solutions.

Product Feature

  • Detection of people.
  • Motion detection software.
  • Control of the area.
  • Finding abandoned items.
  • Virtual line crossing detection, crossing statistics.
  • WDR 120 dB – neutralizes the effect of different-contrast lighting on the image quality.
  • 3D DNR – Noise Reduction.
  • Shooting in vertically oriented resolution (2160 × 3840).
  • Defog – increasing the contrast to eliminate the effect of fog and smoke.
  • ROI – fixing on the selected area and simultaneously reducing the resolution in the rest of the frame to optimize the bitrate.
  • BLC – Backlight Compensation.
  • Day/Night mode with ICR, with sufficient illumination to refract infrared rays.
  • Broadcast speed: 8 MP – 15 fps.

Technical Specifications

Audio: audio in/out 1/1

WDR: WDR (120 dB)

Maximum video output resolution: 3840×2160

Image sensor: 1/2.7″ CMOS

Bitrate (Mb/sec): 10

Power supply: DC 12 V, PoE

Lens (mm): 2.7-13.5

Weight Net (kg): 0.726

Sensitivity(Lux): 0,003

Ingress protection: IP67

Dimensions (mm): Ø74.5×215.8

Power consumption, Watt: 13

Working temperature, C°: -40…+60

Day/Night Mode: Mechanic IR-filter

Network interfaces: RJ-45
