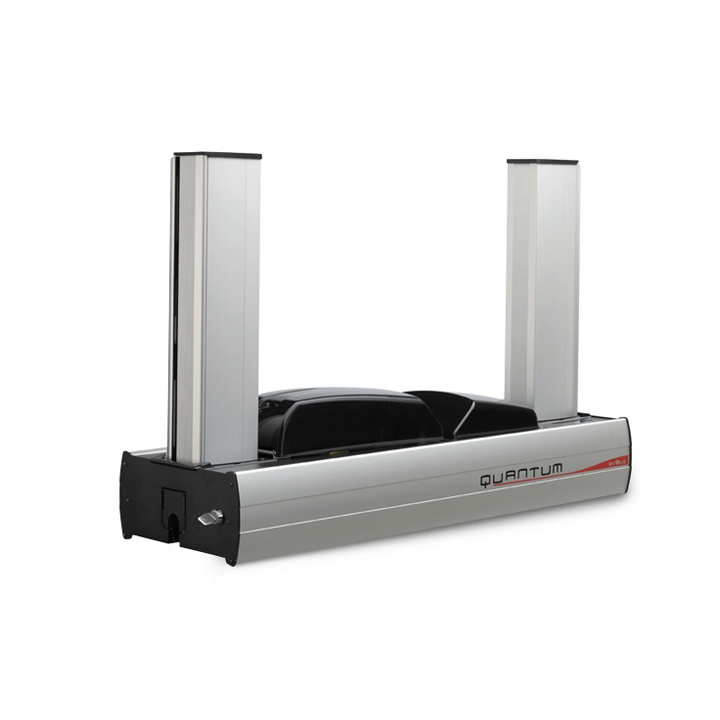

eVOLIS Quantum ID Card Printers

The EVOLIS Quantum ID Card Printers are great for high-volume printing and encoding of plastic cards because they combine the convenience of a desktop printer with the capabilities of an industrial-grade system. Quantum printers are highly flexible, available in single- or dual-sided configurations, with or without a centralised locking system. To ensure better print quality, these printers have a 300 dpi print head, support edge-to-edge printing using colour dye sublimation or monochrome thermal transfer technology, and have 16MB memory for dual card storage.

For uninterrupted high-volume production, they have robust aluminium bodies with black plastic covers that house their capacitated interchangeable input and output hoppers that hold 500 cards each. The EVOLIS Quantum ID Card Printers are perfect for massive card issuance demands, including ID badges, loyalty cards, transit passes, event badges, student cards, payment cards, and phone cards. Their combination of advanced printing capabilities, high capacity, and durability in design makes them suitable for demanding card printing and encoding organisations.

General features

2 configurations:
Standard version without locking mechanism
Version with centralized locking system
Single-sided and dual-sided printing module
Edge-to-edge printing
Color dye sublimation, monochrome thermal transfer
300 dpi print head (11.8 dots/mm)
16MB memory (RAM) allowing two card storages (front & back)
Interchangeable input and output hoppers, capacity of 500 cards each (0.76 mm – 30 mil)
Aluminum body, black plastic covers

2-line LCD display
Status LED for printer and encoding unit monitoring

Printing Performances
Single side:
Color (YMCKO): 150 cards/hour1
Monochrome: 1000 cards/hour
Dual side:
Color (YMCKO-K): 115 cards/hour
Monochrome: 320 cards/hour

USB 1.1 (compatible 2.0)
Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

Centralized locking system (optional)

Additional encoding modules
Reversible upper and lower encoding unit for magnetic stripes and contact smart cards (patented)
HiCo/LoCo magnetic stripe encoder ISO 7811 or JIS2
Smart contact station – ISO 7816-2
Connecting panel and mounting area for users own integration of encoding units
Available modules:
Smart encoding unit – PC/SC, EMV 2000-1
Contactless encoding unit – ISO14443A & B, Mifare, DesFire, HID iCLASS
Other types upon request

Card management and specifications
Detachable and interchangeable card input feeder and output stack with 500 cards capacity (0.76 mm – 30 mil)
Reject hopper for defective cards with a capacity of 20 cards (0,76mm – 30mil)
Card types:
PVC cards
Composite PVC cards
PET cards
ABS cards1
Special varnished cards1
Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)
Thickness: 0.76mm to 1mm (30 to 40 mil)
