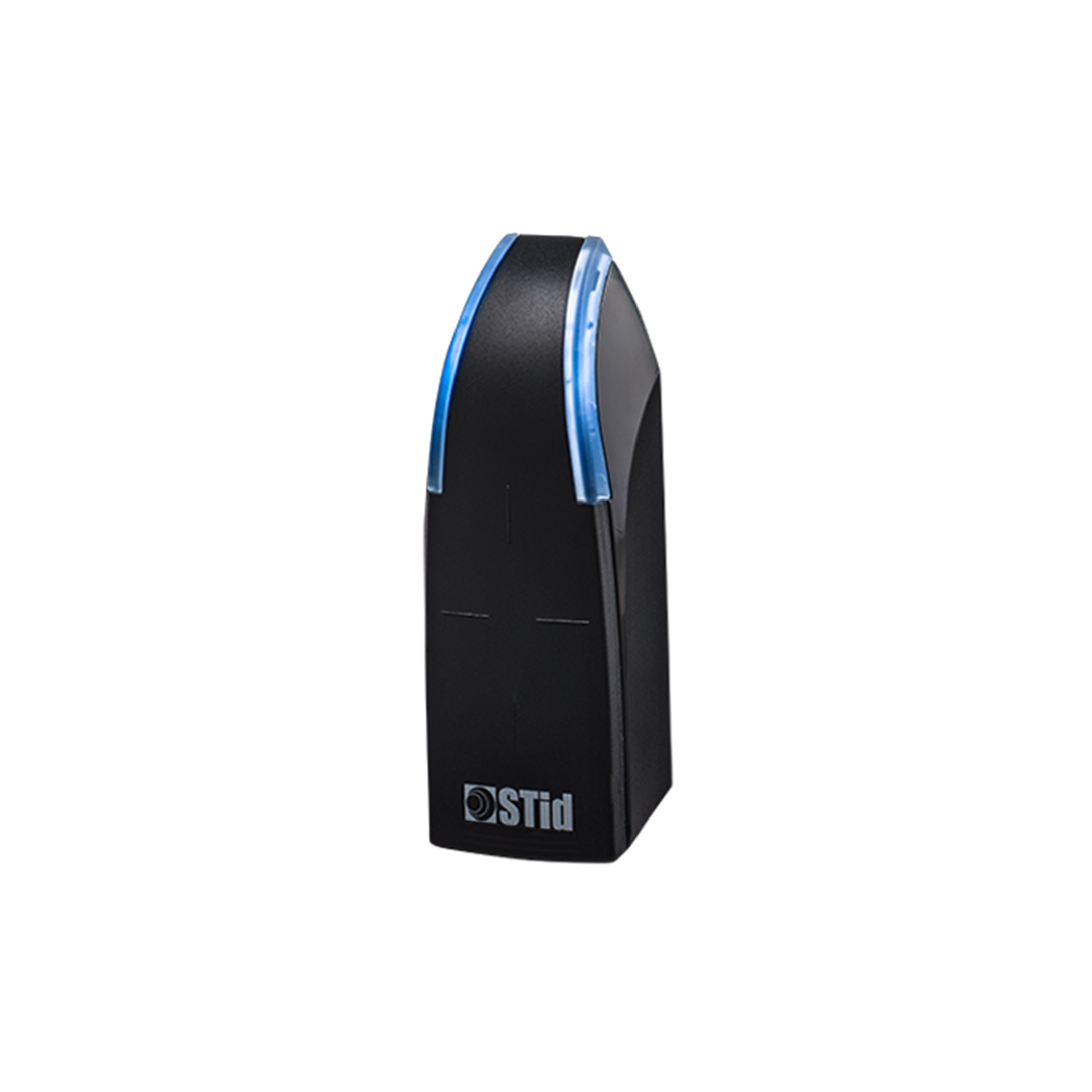

ARC1 Easyline pre-configured 13.56 MHz DESFire® EV2 Mullion Reader

Key features:

• Effortless fit in spaces with a small footprint: This mullion card reader ensures maximum space usage without compromising on security by neatly fitting into tight places such as door frames, lifts or small hallways
• Elegant design: Due to its understated and sophisticated design, the ARC1 Easyline blends in well with any setting
• Robust security mechanisms: ARC1 Easyline offers powerful defence mechanisms that protects data from potential threats and unauthorised access
• Seamless integration with existing systems: This adaptable mullion card reader seamlessly blends with current protocols and existing systems, catering to your varied access control needs

Specifications:

• Frequency: 13.56 MHz
• Chip: MIFARE® DESFire® EV2
• Interfaces: Wiegand 26, 32 or 37 bits
• Power supply: 9 – 15 VDC / Consumption: 130 mA/12 VDC maximum
• Color: Black
• Operating temperatures: – 30°C to + 70°C
• Resistance: IP65 level (excluding connectors) – weather, water and dust resistant (CEI NF EN 61086 certification) / Humidity: 0 – 95%
• Standards: ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
• Functions: Pre-configured secure read only
• Reading distances: 0 – 6 cm in RFID
• Material: ABS-PC UL-V0 (black)
• Dimensions (h x w x d): 111.5 x 42.2 x 22 mm / 4.39’’ x 1.66’’ x 0.86’’
• Protection: IK10 certified reinforced vandal proof structure
