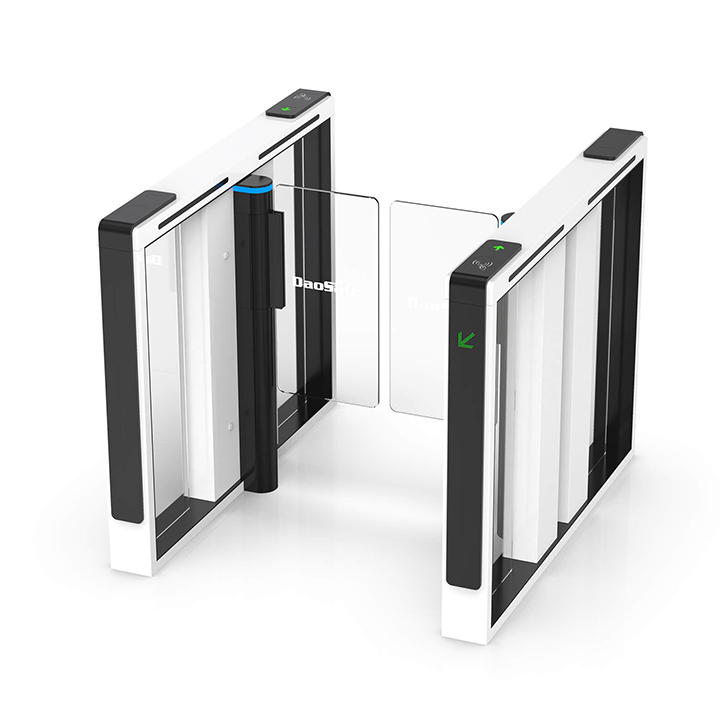

Optical Swing Turnstile DS-Q20

The DS-Q20 Quantum Optical Swing Turnstile is the perfect solution for high-traffic areas managing pedestrian flow in both directions with ease. It comes with a spacious 1100mm wide passageway accommodating wheelchairs, large packages, and emergency access efficiently. Its unmatched speed with its adjustable 0.2-second open and close rate, anti-reverse feature equipped with sound alarm and fire safety settings make it a perfect fit for any environment with high traffic. Boasting a sleek black and white design, the DS-Q20 offers customizable logos, colours, and dimensions. Its Infrared sensor alarm function and quick response time caters to high-end secure access control preventing illegal or reverse intrusion.

Features

  • Fastest open and close speed rate of 0.2 seconds (adjustable)
  • Infrared sensor alarm detects illegal intrusion and reverse intrusion, automatically locking the turnstile
  • Anti-intrusion function locks the turnstile until a valid opening signal is received
  • Fast response and Longevity with 3-year warranty
  • Easy installation and maintenance
  • Operates smoothly with low noise, no mechanical impact
  • Both Single directional or Bi-directional available
  • Swing arms locks automatically within 5s (can be setting) if passenger delay to entry with its auto reset option
  • Arms open automatically when power is off, meeting fire safety requirements
  • LED indicator with entry/no entry signal
  • Glass arms reset automatically after a strong hit without damage

Specifications

  • Model No. : DS-Q20
  • Type: Optical Swing Turnstile
  • Communication: Dry contact, Relay signal, RS485
  • Framework Material: Steel + White and black stoving varnish
  • Arms material: Plexiglas-transparency
  • Swipe Card panel Material: Tempered glass
  • Dimension: 1400 *120 * 978mm
  • Net Weight: 65kg/pcs
  • Passage Width: 600~1100mm
  • Passing Direction: Single directional or Bi-directional
  • Power Supply: AC220V/110V, 50/60Hz
  • MCBF: 10 million
  • Operation Voltage: 24V DC
  • Power Consumption: 20W
  • Operation Humidity: 0 – 95% (No freeze)
  • Operation Temperature: -20 °C – 75 °C
  • Working Environment: Indoor / Outdoor
  • Flow Rate: 40 people per minute
  • Emergency: Arms will open automatically
  • Flexibility: Integrate with any type of access control
  • Infrared Sensor: 6 Pairs (standard)
  • LED Indicator: Yes; red and green
  • Certification: Compliance CE, RHOS
