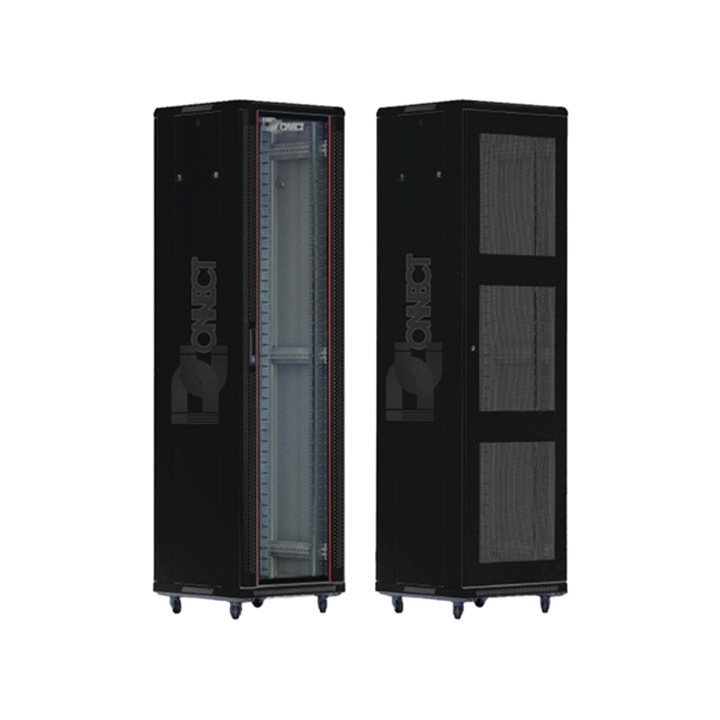

They can be used in data centres, telecom rooms, industrial control facilities, corporate IT installations, and security surveillance. A toughened glass front door, a steel back door, and a customisable locking system will provide physical security and full visibility of the installed devices. A reliable server & networking cabinets supplier in the UAE helps provide off-the-shelf solutions that meet international standards. These enclosures maximise the use of space, ease maintenance, and facilitate the long-term growth of infrastructure.
Key Features
- Standards compliance: Compliant with fully ANSI/EIA, IEC, DIN, GB/T, and ETSI 19 sq. equipment.
- Strong construction: It is built with SPCC cold-rolled steel and reinforced profiles that are used to provide structural integrity.
- Customisable door opening direction: Toughened glass front door and steel back door.
- Large loading capacity: Can take 800 kg of static load when it is required by dense server and networking equipment.
- State-of-the-art surface protection: Multiphase surface treatment for superior corrosion resistance.
- IP20: Indoors protection against solid objects over 12 mm.
- Adjustable positioning: Equipped with levelling feet that provide stable installation even on uneven floors.
Technical Specifications
For detailed performance parameters, here is the server & networking cabinets datasheet:
| Category | Specification |
| Rack Dimensions | 42U height, 800 mm width, 1000 mm depth |
| Material | SPCC cold-rolled steel body, aluminium-zinc profiles |
| Component Thickness | Mounting profiles: 2.0 mm, Angles: 1.5 mm, Other panels: 1.2 mm |
| Doors | Front: Toughened glass, Rear: Solid steel, left/right reversible |
| Surface Finish | Degreased, vitrified, and powder-coated |
| Protection Rating | IP20 rated, protects against objects over 12 mm |
| Load Capacity | Supports up to 800 kg |
| Cooling | 4 top-mounted fans with ventilation slots |
| Accessories Included | 2 shelves, 2 vertical cable managers |
| Colours | RAL 7035 Grey or RAL 9004 Black |
These specifications confirm that the server & networking cabinets solutions are built for long-term reliability and secure infrastructure deployment.
