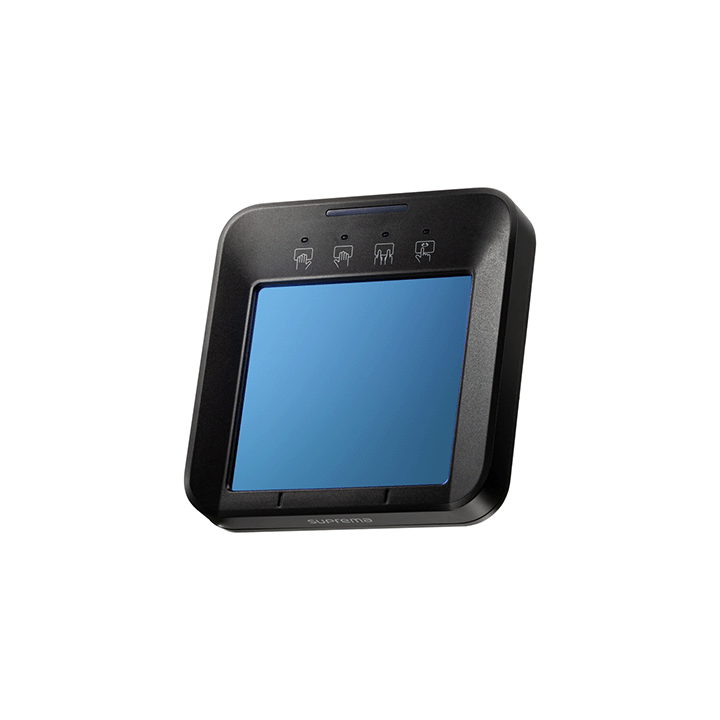

Xperix REALSCAN – S60

If your search is for a portable fingerprint scanner that’s lightweight and ultra slim, RealScan S60 can be your best choice. it’s an FBI Appendix F certified USB fingerprint scanner built over a proprietary algorithm with advanced TFT- Optical technology. RealScan S60 can be quickly enabled as an efficient biometric fingerprint scanner for mobile to capture the highest fingerprint image quality from flat and rolled fingers, ensuring little effect from various fingerprint conditions. This award-winning technology detects fake fingerprints, providing customers an excellent accuracy, which can be readily optimised for easy integration into portable devices, benefiting from the brand’s product and solution.

Product Benefits

  • FBI IAFIS Certified
  • Easy integration with any devices
  • USB Type-C Connected
  • Advanced rolled image construction technology
  • AI based, Live finger detection
  • Waterproof Structure with IP65 standards

Specifications

  • Fingerprint Type: Four Finger Flat / Two Finger Flat / Single Flat & Rolls
  • Resolution/Gray scale :500 dpi / 256 gray levels
  • Dimension (W x L x H) :118 x 120 x 19.3 mm (4.64’’ x 4.74’’ x 0.76’’)
    102.4 x 112 x 15.9 mm (4.03’’ x 4.40’’ x 0.63’’) – RealScan S60M
  • Platen Size (W x L): 83.3 x 78.2 mm (3.28’’ x 3.07’’)
  • Capture Size (W x L): 81.28 x 76.2 mm (3.2’’ x 3.0’’)
  • Image Size (W x L): Four Finger Flat: 1600 x 1500
    Two Finger Flat: 900 x 900
    Single Flat & Rolls: 800 x 750
  • Image Quality Standards: FBI IQS Appendix F
  • Ingress Protection: IP65 (IP65-rated top surface)
  • Operating Temperature: -10℃ ~ + 55℃
  • Operating Humidity: From10 to 90%, non-condensing
  • Power Supply: USB Host
  • Weight :220g / 189g (Real Scan S60M)
  • Interface: USB 2.0 High Speed
  • Operating Systems: Windows: 7, 8, 8.1, 10 32 / 64bit
    Linux: Ubuntu, Debian, Fedora, Cent OS 32 /64bit
    Android 5.0+ (Custom 4.0)
  • Live Finger Detection Technology: ISO 30107-3 Compliant (PAD Level 1 & 2)
  • Certificate: FBI, KC, CE, FCC, UL, IEC62471, WEEE, RoHS, REACH, WHQL, USB-IF
  • Sound Interface: Buzzer
  • Usage Environment: Indoor
