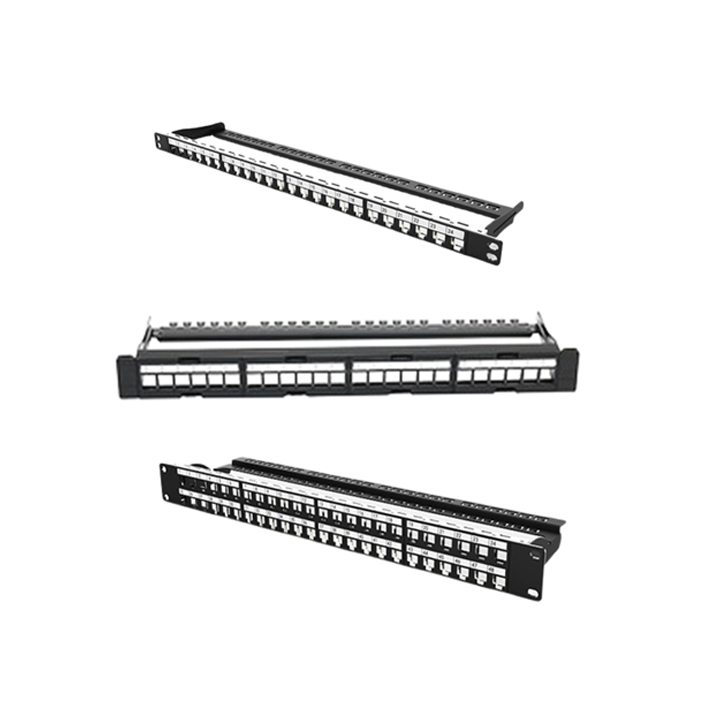

The 24-port (0.5U / 1U) and 48-port (1U) unloaded patch panels are engineered for structured cabling installations that demand precision and order. With dedicated tie points, rear cable trays, and tool-free snap-in assembly, these panels reduce installation time and improve serviceability.
As a recognised unloaded patch panel supplier in the UAE, system integrators and enterprises can rely on preconfigured options that meet international standards, guaranteeing compatibility with modern IT infrastructure.
Product Features
- Keystone compatibility: Supports Cat6 and Cat6A jacks for flexible deployment
- Durable frame: SPCC steel body with powder-coated surface
- Integrated tray: Rear cable management with tie points for neat routing
- Tool-free snap-in: Enables fast installation without screws
- 19-inch standard: Fully compliant with industry rack dimensions
- Easy identification: Numbered front panel for quick reference
- Professional finish: Smooth coating resistant to scratches and corrosion
Specifications
| Category | Specification |
| Panel Frame | SPCC steel, black powder-coated |
| Panel Thickness | 1.5 mm |
| Cable Management Tray | SPCC steel, snap-in, black powder-coated |
| Port Housing | High-impact ABS plastic, UL94V-0 fire rating |
| Port Capacity | 24 ports (0.5U / 1U) or 48 ports (1U) |
| Mounting | 19″ rack and cabinet compatible |
| Dimensions | 482.6 mm wide – 22.2 mm (0.5U) – 44.4 mm (1U) |
| Tray Depth | 133 mm |
| Weight | 0.485 kg (1U) |
| Cable Support | Various diameters secured with tie points |
| Operating Range | -10 °C to +60 °C |
| Storage Range | -40 °C to +68 °C |
| Humidity Range | 10% – 90% RH |
| Standards Compliance | ANSI/TIA-568.2-D, IEC 60603-7, EIA-310-D, RoHS |
Applications
Unloaded patch panel solutions are deployed in:
- Data centres: Organised cable termination for high-density racks
- Network distribution hubs: Secure Cat6 and Cat6A cabling points
- Enterprise telecom rooms: Professional structured cabling management
- CCTV and surveillance systems: Reliable connections for monitoring devices
- ISP and broadband facilities: Scalable patching infrastructure
Available Configurations
- 24-Port: 0.5U and 1U panel sizes
- 48-Port: 1U panel for high-density installations
- Optional rear cable trays and tie accessories
- Multiple Cat6 and Cat6A keystone jack compatibility
- Black powder-coated finish for consistent appearance
Specifications and accessories may vary by model. Request a quotation for exact details.
