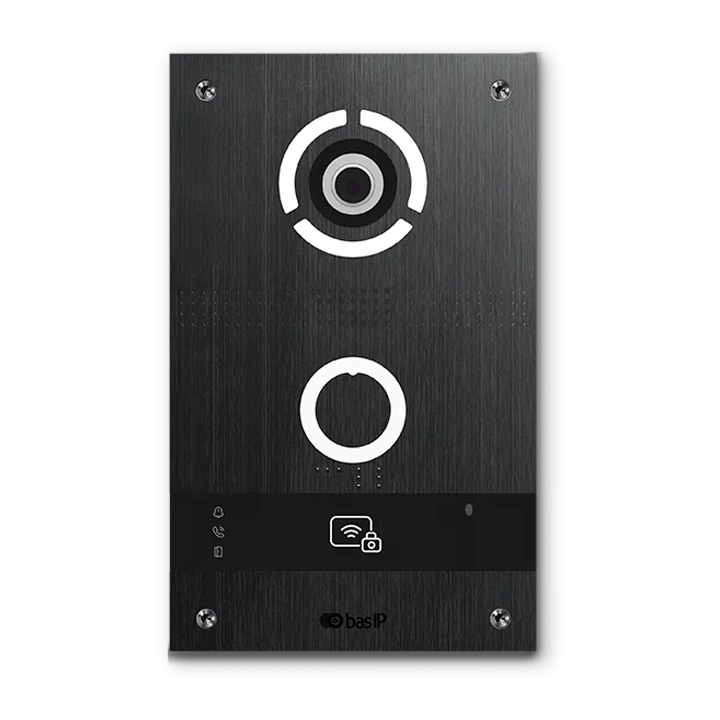

One Button Intercom Panel – AV-08FBIL

AV-08FBIL is a one-button intercom panel with multi-modal user authentication capabilities. The panel verifies user identity with facial recognition, access card, key fob, PIN code, temporary access link, UKEY, or QR codes.

The system allows access to guests using a QR code or a pre-generated link sent by the residents or by automatically reading the guests’ vehicle license plate numbers.

The panel features a 2.0MP camera for facial recognition and three LEDs for indicating the operational status of the panel (one for talking to residents, one for calling, and one to indicate lock-release).

Product Features

  • Multimodal access control: Access via PIN, access cards, facial recognition, QR codes, UKEY, mobile access, or temporary access links
  • Easy integration: Open API enables seamless integration with existing access control platforms
  • Induction loop support: Designed for convenient use by people with hearing disabilities

Specifications



Category Specification
Panel Type Individual
Camera 1/3″
Resolution 2 MP
Camera Angle 120° (horizontal)
Output Video Full HD (1920 × 1080), H.264 Main Profile
Button Type Mechanical
Braille for Call Button Yes
Call Button Backlight White
Night Backlight 6 LEDs
Light Sensitivity 0.01 Lux
Protection Class IP65
Impact Resistance IK07
Induction Loop Output Low-frequency audio signal 1.2 V; 8.2 kOhm
Induction Loop Connector TRS socket (female)
Status Indicators 3 LEDs (Calling, Talking, Lock-release)
Working Temperature -40 °C to +65 °C
Power Consumption 6.5 W (standby: 3.8 W)
Power Supply IEEE 802.3af PoE, +12 V DC
Body Material Stainless steel
Available Colours Black, Silver
Panel Dimensions 130 × 212 × 47 mm
Flush Mount Bracket Dimensions 114 × 196 × 59 mm
Installation Flush mounting, surface mounting with BR-AV8FBL bracket
