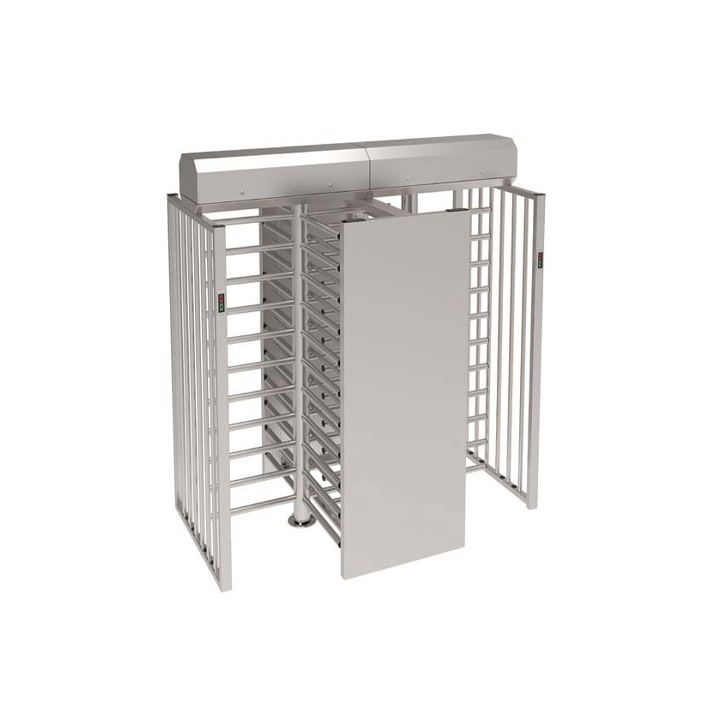

TiSO SESAME TWIN – Full Height Turnstile Gate

The TiSO SESAME TWIN is a double turnstile with an innovative design that maximizes available space, cost-effectiveness, and access control system integration. It provides bidirectional operation and user-friendly management through push buttons. This technologically innovative security gate provides a compact solution for busy areas, like stadiums or large factories with high pedestrian traffic.

The distinctive feature of the SESAME TWIN is its combination of two full-height turnstiles into one sleek unit, occupying less space than mounting two single turnstiles next to each other. Combining a strong build quality and unique security features, TiSO SESAME TWIN offers its users a flawless and secure entrance with maximum value. Its multimodal functionality and elegant look are best suited for enterprises looking for innovative and all-round pedestrian access solutions.

Product Features

Advantages

  • Electromechanical drive (motorized as an option);
  • Bi-directional;
  • Variety of metal and metal treatment types;
  • Three arms (angle between bars 120?) and four arms (angle between bars 90?) modifications;
  • High quality at a cost effective price;
  • Integration with any type of access control and ID systems;
  • Low power consumption;
  • Whisper quiet, low noise operation;
  • Possibility of customization;
  • Wide range of accessories;
  • Complete supply set as a standard;
  • Fial safe / fail secure.

Specifications

Unit dimensions (WxLxH), mm : Sesame Twin – Y – 2234x1158x2300 , Sesame Twin – X – 2100x1340x2300
Crossing capacity, pers/min  : 20
Number of wings (angle) : Y type – 3 (120°), X type – 4 (90°)
Passage width, mm :Sesame Twin – Y – 650 , Sesame Twin – X – 510
Weight, kg (not more) : Sesame-X – 750, Sesame-Y – 800
Standart Mechanism: Electro-mechanical
Standard housing : Brushed SS AISI 304
Available housing : Brushed SS AISI 316 , Polished SS AISI 304,Polished SS AISI 316,Powder coated RAL
Maximum power consumption, W/pass :155
