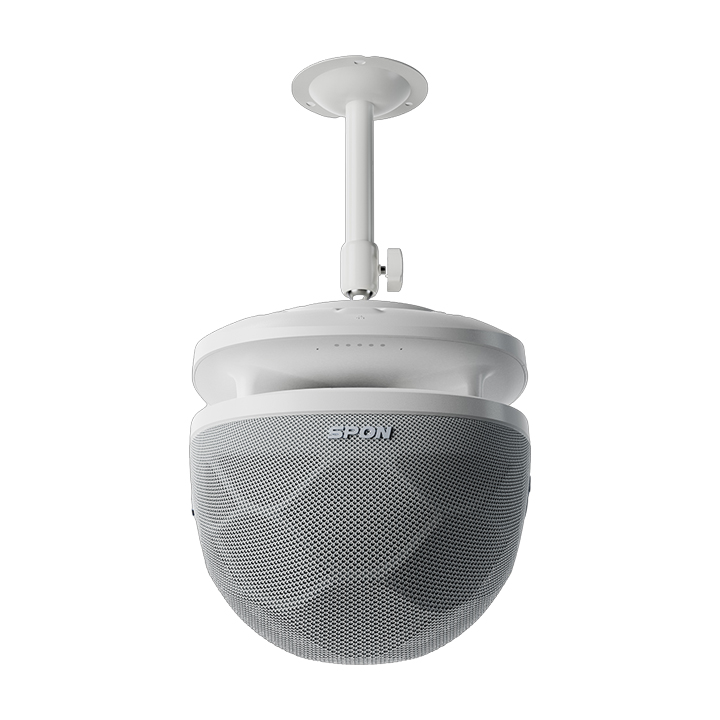

NXT-3602 – Network Equisound Speaker

NXT-3602 Network Equisound Speaker is a feature-packed audio system designed for classrooms, lecture halls, and training rooms. The device can be ceiling or bracked mounted and comes with multiple connectivity options including Bluetooth 5.0, 3.5mm line input, and a network interface to connect with ethernet switches and in turn with network management software. The speaker also lets you mix and adjust inputs from these channels to give the perfect output for all the scenarios.

The device supports dual-mic module with infrared pairing for interference free operation.

NXT-3602 offers high quality sound with dual arc design. The speaker is designed to ensure consistent loudness within an environment using spatial equalization algorithms. The device features an advanced digital signal processor with an 8-band customisable EQ to ensure clear audio in any environment.

Product Features

  • Dual arc formation: Enhances overall loudness while minimizing acoustic interference
  • Dual wireless microphone support: Allows simultaneous operation with two wireless microphones
  • Consistent sound output: Uses spatial equalisation algorithms to deliver uniform audio coverage across the environment

Specifications



Category Specification
Power Supply AC 100 V – 220 V, 50 / 60 Hz
Rated Power Output 30 W (Treble), 120 W (Bass)
Sensitivity (1 m / W) 86 dB ± 6 dB
Maximum Sound Pressure Level (1 m) 100 dB ± 3 dB
Signal-to-Noise Ratio ≥ 85 dB
Audio Sampling & Bit Rate 48 kHz, 16-bit
Operating Temperature 0 °C to +55 °C
Operating Humidity 10% – 90% RH (non-condensing)
Product Dimensions 235 × 200 × 205 mm (without bracket)
Product Weight 2.5 kg
