Features of ARC1
The following functionalities are available in the SECARD software for ARC1:
- Protects virtual cards and program user RFID.
- Makes programming readers master badges, either virtual or tangible.
- Oversees security setups and keys.
The ARC1 Reader’s special tamper protection mechanism makes it impossible to remove authentication keys. This feature ensures that no one can outsmart the device.
- With its six interchangeable modules that may be linked to a single RFID core, the ARC1 Reader enables users to design their own unique setup. Security access control is made easier by this configuration autonomy.
- Additionally, customers can physically alter their equipment to blend in with the building’s design. There are numerous customization options available for the ARC1 reader.

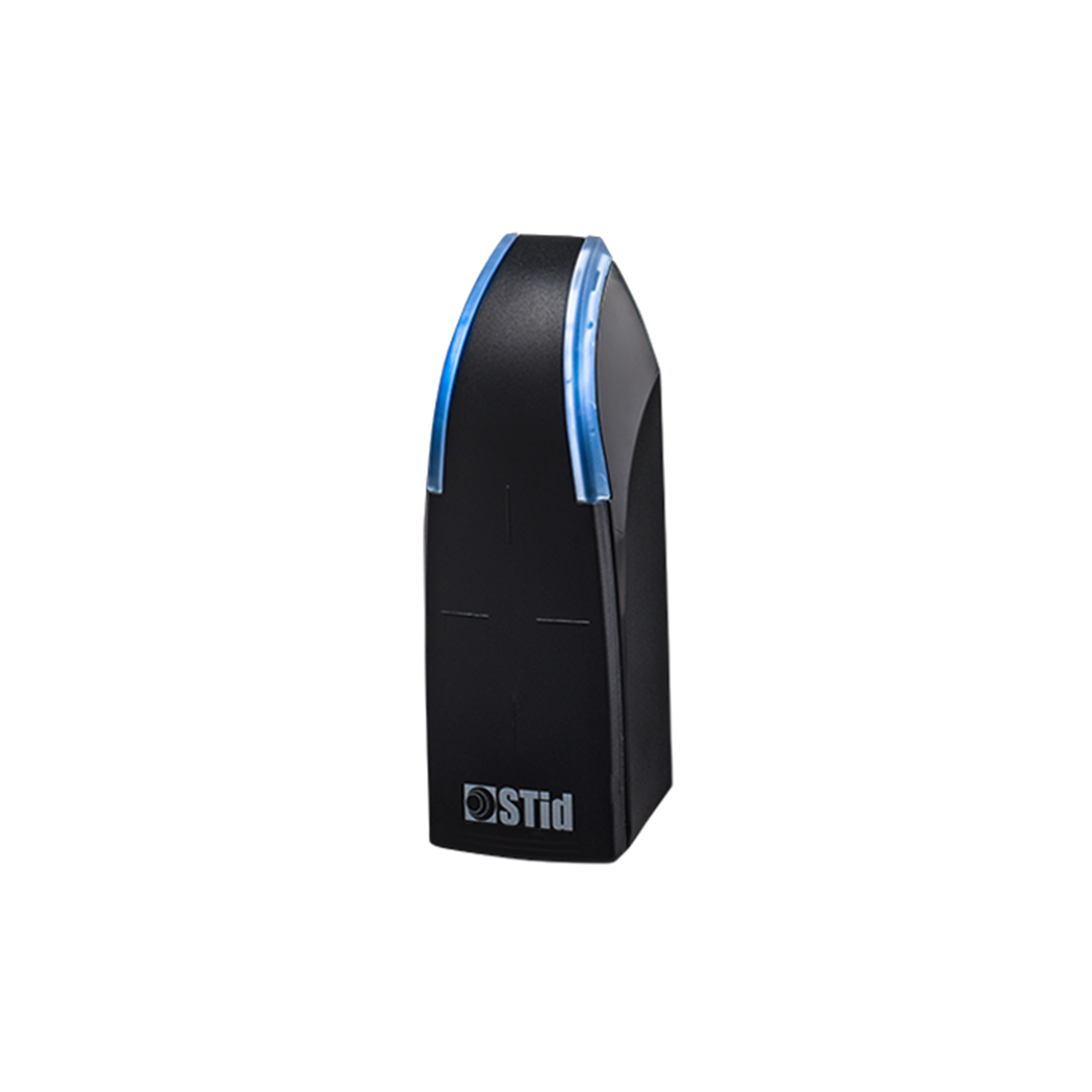

Specifications of ARC1 Reader
| Specifications of ARC1 Reader | |
| Frequency | 13.56 MHz |
| Standards: | ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA ( United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL & RoHS
|
| Functions | Read only: CSN or private ID (sector/file) / Secure Protocol (Secure Plus) Read- Write (SSCP and SSCP2) / Read-Write serial number and secure OSDP™ |
| Reading Distance | 0-8 CM |
| Interfaces | TTL Data Clock (ISO2) or Wiegand output (encrypted option – S31) / RS232 output / RS485 output (encrypted option – S33) with secure SSCP® v1 and v2 communication protocols, OSDP™ v1 (plain communication) and v2 (SCP secure communication) Compatible with EasySecure interface
|
| Color | Black or White – Many shell customization possibilities |
| Operating Temperature | 30°C to + 70°C / – 22°F to + 158°F
|
| Protection | IK10 certified reinforced vandal proof structure / Accelerometer-based tamper detection system
|
| Resistance | IP65 level (excluding connectors) – Weather-resistant with waterproof electronics (Certification CEI NF EN 61086) / Humidity: 0 – 95%
