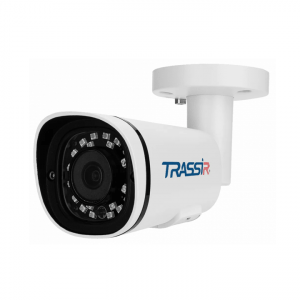

TR – D4B6 2.7 v2 – 13.5

This is TRASSIR TR-D4B6 v2 (2.7-13.5mm), a 4MP (2560×1440) outdoor IP camera designed for all-weather surveillance for enterprise-grade buyers. Its rugged metal casing complies with IP67 standards, shielding it against dust and water with an operating temperature range of -40°C to +60°C. Robust TVS 4000V lightning protection shields the camera from such disasters. It has a 1/3” highly sensitive 0.003lux CMOS sensor and F/1.3 aperture lens offering clear footage shot at wide angles horizontally ranging from 93° to 28° and vertically ranging from 50° to 16°, with adjustable field of views (FOVs). It compresses H.265+, H.265, and H.264 coding modes at a bit rate of up to 8Mbps and frame rate of 25 fps, respectively. The camera has built-in IR illumination for night vision up to a distance of 35m, ensuring uninterrupted video surveillance round-the-clock. The connectivity options are represented by support for both PoE and DC12V supply modes consuming no more than 6.2W power, allowing flexible installation even in areas with fewer commercial power sources available nearby. Its compact dimensions (243.6x92x86mm) occupy only about half a kilogram, so this camera can be easily affixed anywhere. It provides robust performance along with quality and reliability suitable for business professionals who expect industrial-level toughness from their products.

Product Feature

  • – Detection of people, movement, crossing a virtual line, intrusion into the zone, exit from the zone.
  • – WDR 105 dB – Eliminates the effect of changes in the level of illumination on the picture quality.
  • – 3D DNR – Noise Reduction.
  • – Corridor mode (shooting in vertical resolution).
  • – Defog – elimination of blur caused by fog or smoke in the scene.
  • – BLC – backlight correction.
  • – Day/Night mode with mechanical IR cut filter.

Specifications

WDR: DWDR

Maximum video output resolution: 2560×1440

Image sensor: 1/3″ CMOS

Bitrate (Mb/sec): 8

Power supply: DC 12 V, PoE

Lens (mm): 2.7-13.5

Weight Net (kg): 0.56

Sensitivity(Lux): 0,003

Ingress protection: IP67

Dimensions (mm): 243.6×86.4×92

Power consumption, Watt: 6

Working temperature, C°: -40…+60

Day/Night Mode: Mechanic IR-filter

Network interfaces: RJ-45
