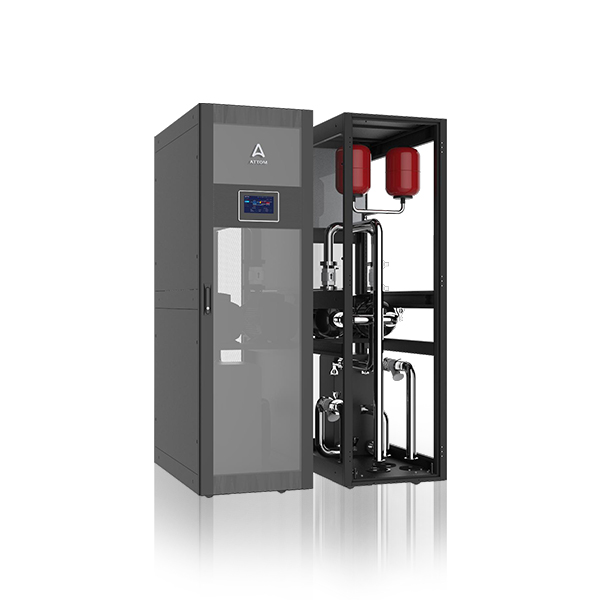

Coolant Distribution Units (CDU) (BT-050-CL, BT-350-CL, BT-010-CA, and BT-060-CL)
- Standard 19-inch rack-oriented design, making it easier to adjust with the existing layout and data center plan.
- Equipped with an intelligent control system to control, monitor, and access the key working status remotely and locally.
- Plug and play design, easy to connect to the IT server with self-healing quick connectors
- Cooling type: Liquid-Liquid and Liquid-Air
- Capacity: 10.5 – 355.5 kW
- Supply temperature: 45 °C
- Coolant: Water and glycol
- Mount type: Rack mount, floor mount, and row mount; varies as per model
Manifolds and Connectors
- Manufactured using stainless steel for reliability and rugged durability.
- Plug and play design, and can be combined with dry disconnects, self-healed quick connectors.
- Provide an easy interface between cold plate loops in the servers and CDUs.
- Supports flexible input and output loop customization and is also vertical and horizontal adaptive.
ChillFlow Free Cooling Chiller (CF-50 and CF-350)
- Capacity DX Mode and FC Mode (for both CF 50 and 350): 50 – 350 and 52 – 390
- It has a natural cooling design that operates in natural cooling mode at low temperatures.
- The highly efficient chiller unit’s internal threaded pipeline provides efficient heat exchange.
- Compatible with water, water and ethylene glycol mixture, and ensures reliable operation in different regions and environments temperatures
- Use environment-friendly refrigerants, like R407C and R134A
- It has an optional wet film evaporation cooling component to pre-cool the intake air, improving the PUE value.
- In-depth testing and repeated verification of the system design and device configuration
Dry Cooler (KSF50DC and KSF350DC)
-
- Equipped with high high-performance heat exchanger system maximizing efficiency
- Capacity (for both KSF50DC and KSF350DC): 50kW and 350kW
- Coolant: Water, glycol, or a mixture of water and glycol for ambient temperature
- Fan type: VDC
- Working range: -35C to +35C
- An optional wet film design to pre-cool the air with evaporative cooling effects
- High corrosion and durable design, making it suitable for long-term applications.
