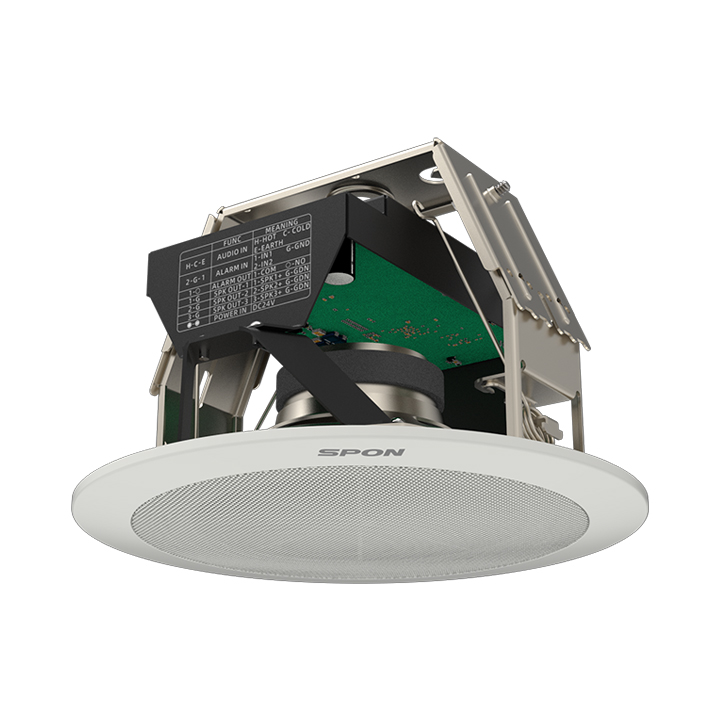

Network Ceiling Speaker GEN-6213A01

The GEN-6213A01 Network Ceiling Speaker is designed for discrete installation in retail stores, shopping malls, or corporate offices to play background music or relay important information to the staff, visitors, employees, or guests. The system comes with an 80MB storage for playing back audio files and Bluetooth connectivity for playing music from mobile devices or PCs.

The speaker is built to be easy to install and set up. It supports POE, which minimises cables and is built on open standards, which allows easy integration with existing systems. If needed, it can be connected with a microphone for use as an intercom.

The GEN-6213A01 Network Ceiling Speaker offers exceptional audio with a built-in DSP and a powerful amplifier.

Product Features

  • Snap-on design: Allows quick and easy installation directly onto the ceiling
  • Built on open standards: Enables easy setup and seamless integration with existing facility management systems
  • Flexible deployment options: Supports Bluetooth connectivity, connection of up to three additional speakers for wider coverage, and remote control via HTTP

Specifications



Category Specification
Power Source DC 24 V, PoE (IEEE 802.3af / 802.3at)
Power Consumption ≤ 3 W
Network Protocols TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, NTP, SIP, ONVIF
Audio Codec Opus, PCMU (G.711u), PCMA (G.711a), G.722
Frequency Response 100 Hz – 16 kHz
Power Output 4 × 3 W (DC 24 V), 4 × 3 W (PoE / PoE+)
Network Interface 100BASE-TX, RJ45 connector
Audio Input 1 × Line/Mic input (balanced, switchable)
Control Input 2 × inputs
Control Output 1 × output
Operating Temperature -10 °C to +50 °C
Housing Material Sheet metal, ABS
Dimensions 180 × 120.5 mm
Weight 630 g
