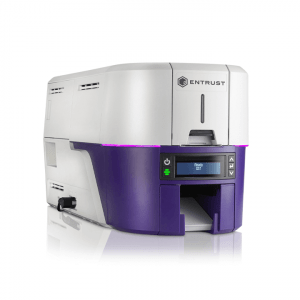

ENTRUST Sigma DS2

Entrust Sigma DS2 is the next-generation single and dual-sided printer from the pioneering global leader in secure identity issuance solutions. It reimagines ID issuance for today’s environments, providing an intuitive user-friendly printer dashboard, flexibility, security, and throughput that is unmatched. This dye-sublimation printer can print up to 880 cards per hour with a high resolution of 300 dpi (up to 300×1200) and single or dual-sided.

It was designed purposely to integrate physical and digital credential issuance through innovative software and hardware. With cutting-edge security features, unparalleled issuance flexibility, as well as high-volume throughput, Entrust Sigma DS2 makes it easy for organisations to issue the most secure identities in the world.

Features

  • Out of Box Experience
  • Printer Dashboard
  • Issuance Flexibility
  • Unmatched Security
  • Purposeful Design
  • Physical & Digital



Standard Features and Supplies

Print Technology

  • Dye-sublimation

Print Capabilities

  • Single or dual-sided

Print Resolution

  • 300 dots per inch (dpi) (300 X 600, 300 X 1200)

Monochrome printing

  • Up to 880 cards per hour

Print Speed

  • Single-sided color ribbon – up to 225 cards per hour (cph)
  • Double-sided color ribbon – up to 140 cards per hour (cph)

Card Capacity

  • Input hopper – up to 125 cards (up to 200 optional)
  • Output hopper – up to 25 cards (up to 100 optional)
  • Reject hopper – up to 10 cards

Card Sizes

  • Card input size:
    • Thickness – 0.010 inches to 0.040 inches
      • (0.25mm – 1.016mm)
    • Dimension – ID-1, CR-79, CR-80

Operating Environment

  • Temperature: 60°F to 95°F (15°C to 35°C)
  • Humidity: 20-80 % RH – non condensing

Physical Dimensions

  • L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm

Weight

  • 12.1 lbs (5.49 kg); with options will vary

Connectivity

  • USB & Ethernet

Warranties

  • 36 Months

Optional Features and Supplies

Magnetic Stripe Encoding

  • ISO 7811 three-track support (high- and low- coercivity)
  • JIS Type II Single-track option

WiFi

  • Wi-Fi types: 802.11g/n
  • Authentication modes: None, WPA2 Personal
  • Dual-band 2.4GHz & 5GHz

Smart Card Encoding

  • Single Wire or Loosely coupled:
  • Contact smart card encoding: ISO 7816 T=0 (T=1),
  • Class A 5V (3V and 1.8V)
  • Contactless smart card encoding:
  • ISO 14443 – A (B), ISO 15693, MiFare Series, DESFire Series,
  • HID IClass Series, HID Prox (125 KHZ)

Color Ribbons

  • YMCKT (250/500)
  • ymcKT (650)
  • YMCKT-KT (350)
  • KT (1000)
  • KTT (750)
  • YMCKF-KT (300)
  • YMCKL-KT (300)
  • ST-KT (500)
  • GT-KT (500)
  • YMCK & YMCKK (500)
