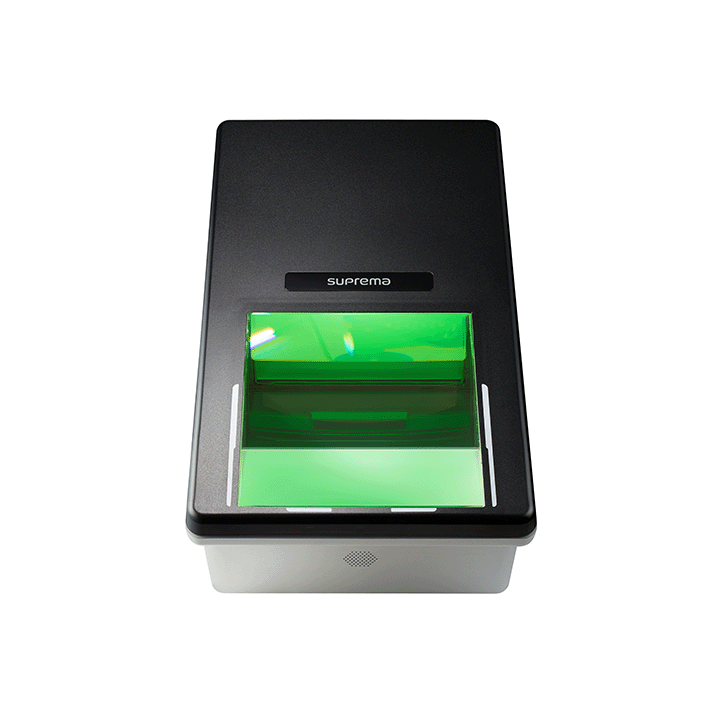

What are RealScan FC’s salient features?
RealScan FC holds FBI IAFIS Appendix F and Appendix P certifications. This means that RealScan FC will function well with the Integrated Automated Fingerprint Information System (IAFIS), fulfilling stringent compatibly requirements set by the FBI
What are the key features of RealScan FC?
RealScan FC has the FBI IAFIS Appendix F and Appendix P Certification. This means that RealScan FC meets the strict interoperability standards set by the FBI and will work with the Integrated Automated Fingerprint Information System (IAFIS).
- RealScan FC is an excellent tool for enabling extensive image-matching processes since it satisfies strict quality requirements for images.
- RealScan FC is a lightweight, portable device that comes in desktop and cabinet variants. It is simple to utilize in a variety of contexts and purposes, including background checks for jobs and border control.
- The Advanced Rolled Image Construction technology (ARIC) powers Xperix’s proprietary slip detection algorithm, which is used by RealScan-FC. With a low error rate and the ability to work at a frame rate of 15 frames per second, the ARIC technology guarantees the best possible image quality.
- In terms of performance, the RealScan-FC’s 400MHz CPU can easily record, store, analyze, and transport fingerprint data while handling large volumes of image processing requests. Furthermore, it lowers the initialization time of a device to less than a second.
RealScan-FC’s structure is waterproof and dustproof. It is sealed to prevent liquid and invasive dust from entering the gadget. Even in the most severe conditions, it can function without any problems because of its excellent IP64-rated protection
Specifications of RealScan FC
| Fingerprint Types | Single Rolls / single flats / dual-finger flats / four-finger slaps upper & lower palm-prints, writer’s palm-prints |
| Resolution | 500 dpi, 256 gray |
| Platen Size (W x L) | 5.16”x 5.12”(131.2 x 130.2mm) |
| Image Size (W x L) | Palm Prints : 2500 x 2500 Four Finger Slap : 1600 x 1500 Single Flats / Rolls : 800 x 750 |
| Maximum Capture Area | 2500 x 2500 |
| Image Quality Standards | FBI IQS Appendix F / Appendix P |
| Ingress Protection | IP64 |
| Operating Temperature | 0℃ ~ 55℃ |
| Operating Humidity | From 10 to 95%, non-condensing |
| Dimension (W x L x H) | 7.6”x 12.4”x 5.9”(193 x 315 x 150mm (156mm, Foot Rubber Inclusive)) |
| Power Supply | 12VDC or USB Power |
| Weight | 5.26kg |
| Interface | USB 2.0 (data) |
| Operating Systems | Windows: Windows 8 or higher 32/64bit Linux : Ubuntu, Debian, Fedora, Cent OS 32/64bit Android 5.0 or higher (Custom 4.0) |
| Certificate | FBI, WHQL, CE, FCC, UL, KC, WEEE, RoHS, REACH, BIS
|
| Accessory | Foot Switch (Optional) |
