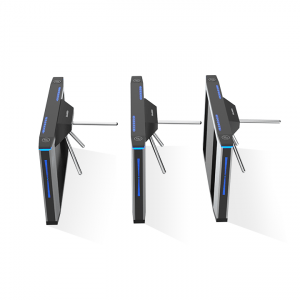

Daosafe DSN – 10

Nebula DSN-10 Tripod Turnstile by Daosafe is a tool that brings you the right mix of affordability and efficiency. Made for uninterrupted pedestrian flow, the turnstile allows one person at a time to enter, thereby maintaining order and safety. Versatile and inclusive, the DSN-10 offers two arm configurations: a standard 650mm tripod arm or an 1100mm swing arm, accommodating wheelchairs and individuals with large luggage. This innovative design ensures accessibility for all, without compromising on safety or functionality. The DSN-10, with its stylish blend of urban refinement and aesthetic minimalism, has a modern-looking cabinet, mounting a swipe card panel as well as an attractive blue LED strip.

Its solid body crate, brushed stainless steel finish, and high-quality black painting process embodies the elite look and feel that impresses anyone the moment they see it in any environment. A smart solution for locations with moderate pedestrian traffic like hotels, gyms, buildings, shopping centres, and reception areas, the Daosafe DSN-10 easily and effectively offers access control, as well as blends functionality, accessibility, and contemporary design at the same time.

Product Features

  • Long-life performance & high operation dependability
  • Single directional or Bi-directional options
  • Smooth, noise-free running system
  • Automatic reset functions
  • LED indicator

Specifications

Model No.: DSN-10

Type: Nebula Tripod Turnstile

Certification: Compliance CE, ROHS

Communication: Dry contact, Relay signal, RS485

Framework Material: 304 brushed stainless steel+ High end black painting

Arm material: 304 Stainless Steel

Dimension: 1600 * 150 * 980mm

Net Weight: 65kg/pcs

Passage Width: 650mm (standard), 1100mm (handicap)

Passing Direction: Single directional / Bi-directional

MCBF: 9 million

Power Supply: AC220V/110V, 50/60Hz

Operation Voltage: 24V DC

Power Consumption: 20W

Operation Temperature: -20 °C – 75 °C

Operation Humidity: 0 ~ 95% (No freeze)

Working Environment: Indoor / Outdoor (shelter)

Flow Rate: 40 people per minute

LED Indicator: Unique blue LED strip (front+ top)

Emergency: Arms will drop down automatically

Flexibility: Integrate with any access control
