TRASSIR CMS Station

TRASSIR CMS Station is a potent centralised management and monitoring server developed for large-scale deployments of the TRASSIR Enterprise IP video surveillance system. Pre-installed with Linux OS and TRASSIR CMS software, it can integrate up to 2000 video servers for centralised command and control.

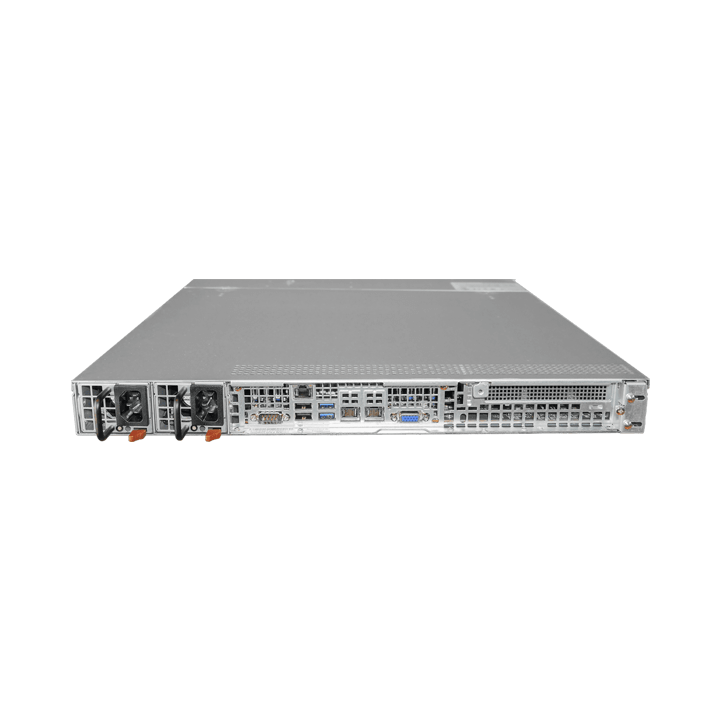

The robust 1U rackmount design incorporates a VGA video output, dual Gigabit RJ-45 ports, four USB 2.0 ports, and two USB 3.0 ports. The equipment offers reliable performance and supports a power input of 220V with a maximum power consumption of 400W. It features compact dimensions (437x369x43mm) that facilitate optimal installation through rack rails. The product helps managers effectively handle mission-critical infrastructure videos from remote sites from one location only, thereby supporting high-level surveillance systems within large organisations.

Functionality:

  • Management of user accounts and rights. Monitoring the status (“health indicators”) and health of the connected TRASSIR video servers.
  • Informing about network problems, malfunctions of cameras, hard drives, databases, etc with logging.
  • Visual display of servers on the map.
  • Creation and storage of backup copies of the settings of the connected equipment and license files required in case of system recovery.
  • Collecting data from intelligent modules.
  • Consolidated reports of different types.

Specifications

Video output: VGA

Power supply, V: 220

Power consumption, Watt: 400

Working temperature, C°: +10 °C… +30 °C

USB 3.0: 2
