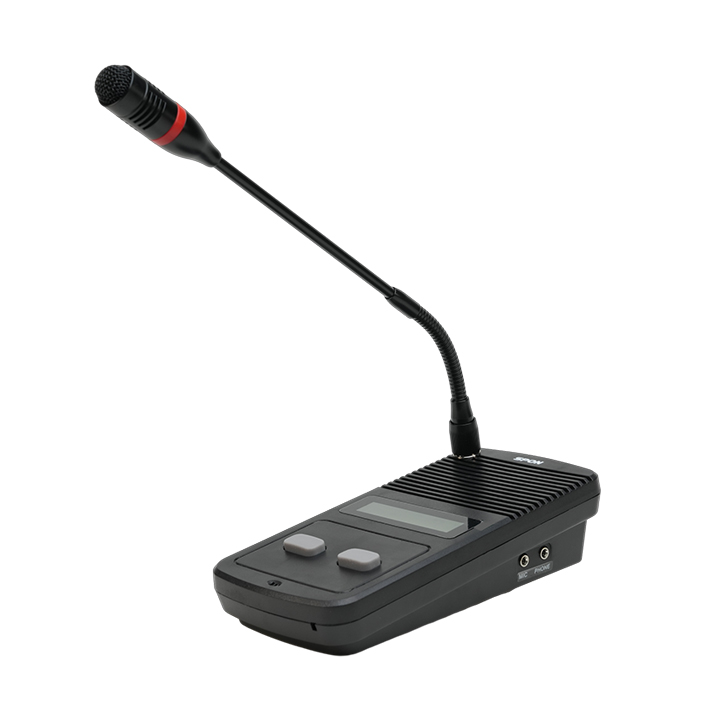

NAS-8525 IP Paging Microphone

NAS-8525 IP paging microphone is a lightweight but feature rich microphone designed for warehouses, factories, prisons, and control rooms. The system comes with a gooseneck microphone for ease of use and a built-in DSP for advanced noise filtration that can clear out background noise effectively. The build-in speakers and the microphone jack allow users to get started quickly but also switch over to a personal headset for comfortable use over time.

The NAS-8525 can be configured easily over a user-friendly web interface and can mantain connectivity even during network interruptions with its two-way full duplex communication capabilities. The device is also compatible with third party SIP endpoints and are compatible with most on-prem and cloud-based VoIP systems.

The device features dual call buttons, support external alarm buttons, and can control door locks or warning lights.

Product Features

  • Built-in speakers: Enables quick installation and easy deployment
  • External system integration: Supports connection with alarm buttons, door locks, and warning lights for quick and efficient situation management
  • Advanced DSP noise suppression: Ensures clear audio quality and smooth two-way communication

Specifications



Category Specification
Power Supply DC 12 V / 1.5 A
Power Consumption ≤ 5 W
Network Communication Protocols TCP/IP, UDP, SIP, ARP, ICMP, IGMP
Audio Sampling Rate & Bit Rate 8 kHz – 22.050 kHz, 16-bit, 16 kbps – 352 kbps
Display Screen LCD, 16 characters × 2 lines
Display Language English
Interfaces 1 × RJ45, 1 × Alarm input, 1 × Alarm output, 1 × Headphone output, 1 × Microphone input
Operating Temperature 0 °C – 45 °C
Operating Humidity ≤ 90% RH (non-condensing)
Product Dimensions 95.7 × 195.9 × 50.6 mm
Product Weight 0.3 kg
Packed Dimensions 340 × 252 × 102 mm
Gross Weight 0.85 kg
