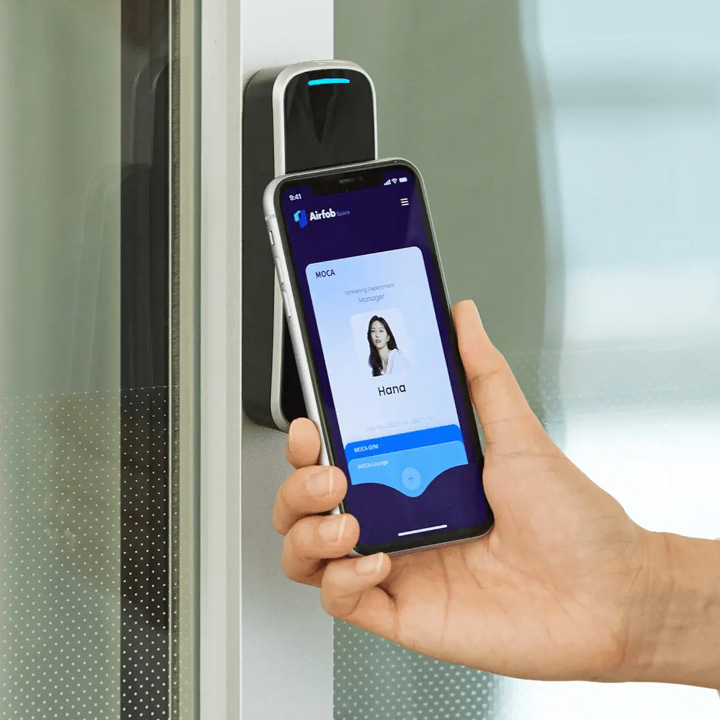

Airfob Edge Reader

Product Features

BLE/NFC Compatibility

• Specifically designed to work seamlessly with our secure, Airfob Space Mobile Credentials.

Cloud-Based Management

• Manage and control readers with the Airfob Pro web portal or app, providing complete access management from any location.

RFID Compatibility

• Airfob Edge Reader Ultimate offers full compatibility with 13.56 MHz RFID cards.

Benefits

• Easy Installation: Just connect it with power and register it with the Airfob Pro app to make it live.
• Quality Made in Korea: Manufactured with the state-of-the-art technology from Korea with a proven work life for years.
• No Door Controllers Required: Our readers themselves act as controllers, verifying credentials and opening doors. This simplifies installation and cuts upfront costs.
• No More Patch Tuesdays: Our cloud-based solution eliminates any additional need for on-site servers and software maintenance, automatically providing customers with the latest version.

Product Specifications: AE-MC

• 13.56 MHz Card Compatibility: MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
• CPU: 1.0GHz
• Memory: 4GB Flash + 64MB SDRAM
• Mobile Card Support: NFC, BLE
• Ethernet: 10/100 Mbps, auto MDI/MDI-X
• RS-485: 1ch Master or Slave
• Wiegand: 1ch Input or Output
• TTL: 2 ch Input
• Relay: 1 Relay
• Sound: Multi-tone Buzzer
• Operating Temperature: -20°C ~ 50°C
• Operating Humidity: 0% ~ 95%, non-condensing
• Power: DC 12V
• Size (W*H*D, mm): 48 x 145 x 27
• Certifications: CE, FCC, KC, RoHS, REACH, WEEE, SIG, TELEC, UKCA
