STid ARCS-B/BT Easyline RFID Bluetooth keypad reader with illuminated keys, designed for secure access control, distributed by ScreenCheck ME in UAE.

ARCS-B/BT Easyline – 13.56 MHz DESFire® EV2 + Bluetooth® pre-configured keypad reader

A combination of improved keyboards and RFID/Bluetooth makes it an ideal RFID reader. It can be integrated well with the existing systems. Capacitive keyboards and RFID/Bluetooth technology are combined in the ARCS-B/BT by STid Security. Additionally, it may be integrated with current access control systems while allowing for hands-free operations. It also makes use of an EAL5+ crypto processor to enhance privacy and data security.

Get a Quote
Categories: ,

ARCS-B/BT has the following features:

  • It can readily interact with Wiegand protocols that are currently in use. Both Wiegand 32 and Wiegand 37 can be interacted with by the gadget.
  • The reader is already set up. Simply plug it in, and it will read your mobile credentials or Easyline RFID.
  • Managing extensions, upgrades, and migrations is made simple by the reader.

Specifications of ARCS-B/BT

Frequency 13.56 MHz + Bluetooth® (Low Energy)
Standards ISO14443 types A & B, ISO18092 / Certifications: CE (Europe), UKCA (United Kingdom), FCC (USA), IC (Canada), BIS (India), RCM (Australia & New Zealand), UL, RoHS & UL294 Indoor & Outdoor
Chips STid Mobile ID® (virtual card), MIFARE® DESFire® EV2, NFC (HCE)
Functions Pre-configured secure read only
Reading Distances 0 – 6 cm in RFID / 0 – 20 m in Bluetooth®
Resistance IP65 level (excluding connectors) – weather, water and dust resistant (CEI NF EN 61086 certification) / Humidity: 0 – 95%
Protection IK08 certified reinforced vandal-proof structure

Related Products

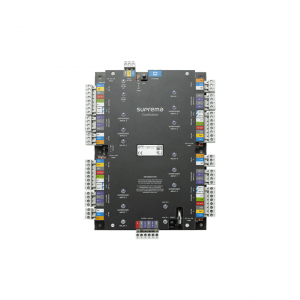

Image of black Suprema CoreStation access control board with various ports and connectors.
