9500 SC

KeyBox 9500 SC: Just like 9400SC, But With Increased Capacity

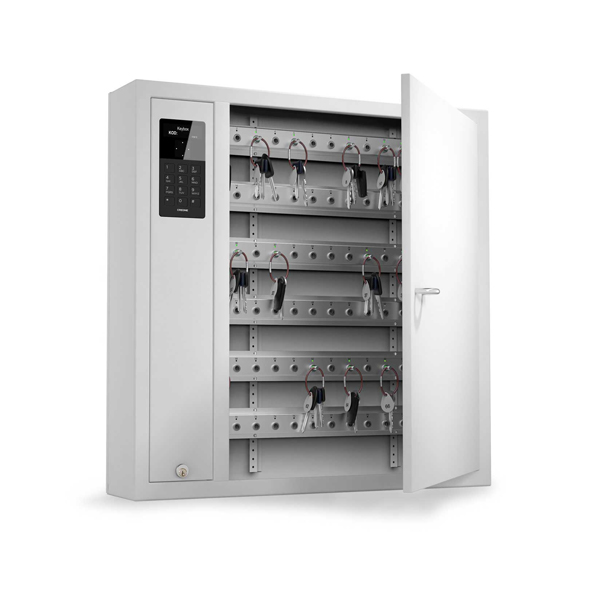

The KeyBox 9500 SC is an intelligent key cabinet system with expanded space to handle a larger number of keys. Suitable for enterprises and growing teams, this KeyBox system gives you the control of the keys to you, actually.

For modern business facilities in the UAE, unsecured key hooks, spreadsheets, and sign-out books just don’t cut it, especially when you are juggling a handful of keys. One mismatch, and you are dealing with lost time and security risks.

However, the key management system changes with this key box installed on your premises. The rated cabinet has strips that have IntelliPin pegs. Each peg has a unique ID associated with it, which registers and logs all the activities, from key removal to tempered access.

With space for 84 individually locked keys, every IntelliPin peg tells a story: who took it, when, and if it came back on time.

Nestled close to the cabinet is the control box with a high-quality display, which allows you to enter the PIN or read the card to unlock the key. The display screen shows the information about who has the key, so no wasting time call to find out who has the key.

Overall, you can eliminate the chaos with smart, trackable, and role-based key access, all thanks to 9500 SC, the intelligent key cabinet system.

Key Features

  • Spacious, yet it can be expanded: The 9500 SC can hold 84 keys, but if you want to scale up, you can expand its capacity by connecting expansion cabinets with the number of strips you require.
  • Audit trail that you can access and rely on: Each key action is logged down to the second, making this key control box a powerful tool for internal compliance, time tracking, and loss prevention.
  • Choose between solid security and easy access: The pegs come in two different versions: lockable and non-lockable. The lockable peg locks the key inside the strip, and non-lockable pegs do not restrict the key, but they are far from unsecured.
  • Tamper alerts and forced-entry detection: Lockable pegs do not make the key accessible without authorization. However, non-lockable pegs will raise an alarm if someone without authorization tries to take the keys. Every unauthorized move is caught in real time.
  • Direct integration with external systems: The key management box can be integrated with external systems, like alarm systems and readers. It can support a door alarm, a key alarm, and a burglar alarm.
  • Interactive keypad with display screen: The key box has a keypad with a clear display that informs about who has the key or opened a specific compartment, and everything on the screen. With a solid battery back, you never lose access to your keys.

Product Specifications

Maximum number of positions 84
Maximum number of key strips 6
External dimensions 730 x 746 x 140 mm
Weight (when fully equipped) 30 kg
Material 1.5 mm Galvanised steel
Power 230V
Backup 12V, 1.2Ah
Network connection Yes
Software KeyWin6
Installation Walls
Accessories Card reader (13.56 MHz/125 kHz), number plate, sealing cables, and alcohol interlock
