Daosafe DS – 411

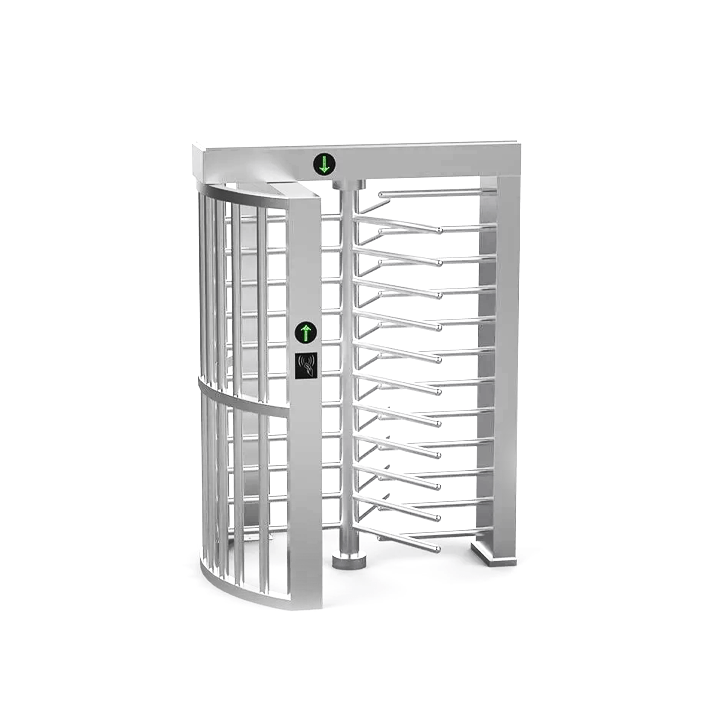

Daosafe DS-411 is a full-height turnstile that provides the most secure access control solutions in the most challenging environments. The simplicity of the design makes the system easy to implement for one-way or bi-directional entry. This ensures that the system serves both indoor and outdoor applications. The robust, weatherproof, and anti-corrosion brushed stainless steel DS-411 body is of a superior grade and cannot be broken down by any condition. There is sufficient space for securely integrating access devices, such as RFID readers, fingerprint scanners, screens, counters, push buttons, coin slots, and barcode/QR readers.

The DS-411 model is well-equipped with highly secured features, making it a perfect choice for prisons, stadiums, construction sites, and many other facilities where it is essential to control the traffic flow, regulate access to different zones, and prevent access to restricted areas.

Product Feature

  • Long-life performance, high operation dependability and fast response
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running
  • Single directional or Bi-directional is selectable
  • Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
  • Anti-tailing function: only one person passes at one time
  • When power is off, arms will open automatically, which is complying with fire safety requirements
  • LED indicator (red × means no entry; green → means entry)
  • Structure of ring cover on top and bottom to beautify it
  • Override key function: when power failure, support to control open and close by manual
  • Easy to install and maintain
  • 3-year warranty support

Specification

Model No : DS411

Brand : Daosafe

Framework Material : 304 Full Stainless Steel

Dimension : 1460 * 1250* 2180mm

Weight : 180kg/pcs

Passage Width : 650mm

Arm Support : 120° rotors with 3 sections or 90° rotors with 4 sections

Passing Direction : Single directional / Bi-directional

MCBF : 5 million

Power Supply : AC220V/110V, 50/60Hz

Operation Voltage : 24V DC

Power Consumption : 40W

Operation Temperature : -15 °C – 60 °C

Operation Humidity : 0 ~ 95% (No freeze)

Working Environment : Indoor / Outdoor

Flow Rate : 35-40 people per minute

LED Indicator : Yes

The emergency : Automatic arm opens when power off

Communication : Dry contact, Relay signal, RS485
