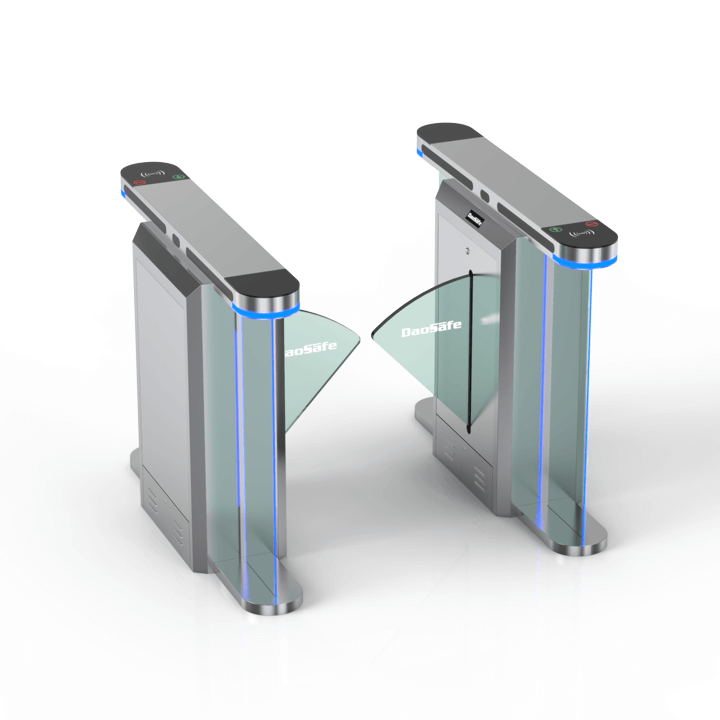

Daosafe Flap model DS – 318

The Daosafe Flap Model DS-318 Optical Flap Turnstile epitomises access control excellence. It seamlessly integrates into areas with high pedestrian traffic flow in both directions and sets a new standard for functionality and aesthetics. This device features a sleek, unique design with top-end technical specifications. Its mesmerising white tempered glass side panels are lit up by special LED lights that create an enthralling effect, immediately capturing attention and complementing the architecture of any environment. Brushed stainless steel owes it superior structural integrity, sturdiness, and capacity to withstand different weather elements.

The card panel made from black-tempered scratch-less glass adds a sophisticated look with the integration of form and function. It makes a difference in crowd management by providing access that administers the high pedestrian traffic while providing a beautiful space.

Features

  • Long-life performance & high operation dependability
  • Anti-intrusion, Anti-reverse & Anti-trailing functions
  • Single directional or Bi-directional options
  • Smooth, noise-free running system
  • Automatic reset functions
  • LED indicator

Specifications

Model No.: DS318

Type: Optical Flap Turnstile

Framework material: 304 Stainless steel+ Plexiglas glass arm+ tempered glass side panels with dazzling LED light

Arm material: Plexiglas-transparency

Dimension: 1200 *185 * 1000 mm

Net Weight:  70kg/pcs (single core), 80kg/pcs (double core)

Passage Width: 600 mm (standard), 900 mm(wheelchair)

Passing Direction: Single directional / Bi-directional

MCBF: 12 million

Power Supply: -AC220V/110V, 50/60Hz

Operation Voltage: 24V DC

Power Consumption: 40W

Operation Temperature: -20 00 – 75 00

Operation Humidity: 0 – 95% (No freeze)

Working Environment: Indoor / Outdoor (IP65)

Flow Rate: .11. 55-60 people per minute

LED Indicator: Two LED indicators on top: green “-p” entry. red “—” no entry

Infrared Sensor: la_ 5 pairs (3 pairs on the top +2 pairs on the below)

Emergency: Automatic arm open when power off

Flexibility: Aar Integrate with any access control
