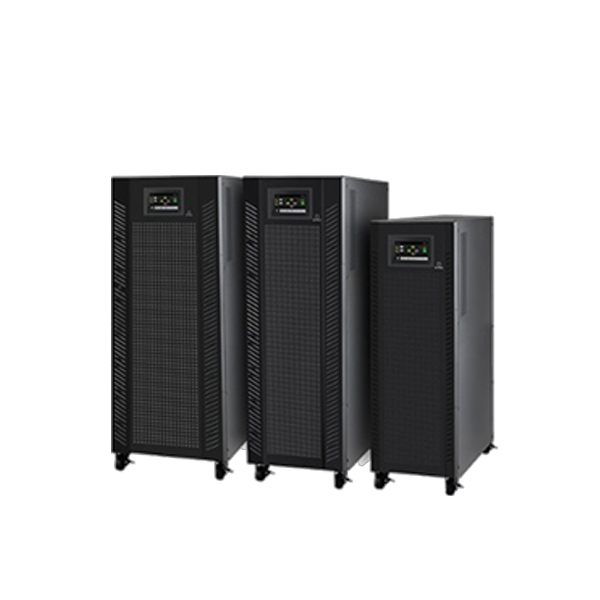

Tower Type UPS 3 phase 10kVA to 200kVA

When Every Second Counts, Count on Tower UPS.

A tower-type UPS offers high performance in a compact and standalone form. This is a standalone, vertical power backup unit that protects critical equipment from power outages, voltage fluctuations, surges, and other electrical issues.

Unlike rack-mounted systems that fit inside server racks, a tower UPS stands upright like a cabinet and is typically installed on the floor.

The ATTOM’s AgilePower tower-type UPS is a three-phase model with capacity between 10kVA to 200kVA. It has a large, intuitive 7-inch color touchscreen that provides real-time system information, alarms, configuration menus, and diagnostics.

The AgilePower tower-type UPS system is designed using robust DSP technology. The Digital Signal Processing, or DSP, technology uses advanced digital processors to monitor, control, and manage the power conversion process within a UPS system in real time. You can expect a faster response to power disturbances like surges, sags, and spikes, and it keeps your sensitive equipment safe.

Besides, with active input power factor correction design, the AgilePower tower type UPS in the UAE ensures better output voltage conditions, power quality, and power performance at all times. That’s why businesses can order tower-type USP systems for their mid-size to large data centres.

Also, there is an optional isolation transformer for environments requiring electrical isolation or voltage transformation to ensure safe operation.

Product Features

  • True Double-Conversion Technology: The AgilePower Tower UPS uses online double-conversion architecture, so your critical equipment receives pure, continuous, and isolated AC power.
  • Output Power Factor: With a power factor close to 9.0/1.0, the USP tower type system delivers more real power to your equipment and reduces power wastage.
  • Active Power Factor Correction (PFC) in All Phases: Built-in PFC actively regulates power flow across all three phases, minimizing harmonic distortion and improving input power quality.
  • Frequency Converter Mode: It supports frequency conversion between 50Hz to 60Hz. So, it can seamlessly operate in mixed power environments or with imported equipment that requires different frequency standards.
  • ECO Mode: The UPS features an ECO operating mode that supplies power through the bypass line under stable conditions.
  • Emergency Power Off (EPO) Function: In critical situations, the EPO switch can instantly shut down the UPS output and prevent electrical hazards.
  • Multi-Protocol Communication Support: The system supports SNMP, USB, and RS-232 communication interfaces for remote monitoring, configuration, and alerts through standard management systems or integration with BMS/DCIM platforms.
  • 3-Stage Extendable Charging Design: The UPS system’s battery charging improves through a multi-stage charging algorithm. This ensures faster recharge cycles, reduced overheating, and longer battery service life.
  • Maintenance Bypass Available: There is a built-in maintenance bypass switch allows for servicing or module replacement without interrupting the power supply to the load.
  • Optional Parallel Operation (Up to 4 Units): The system supports parallel connection of up to four UPS units, which enables capacity scaling or N+X redundancy for enhanced reliability in mission-critical deployments.
  • Adjustable Battery Configuration for Long-Run Models: You can configure different battery quantities depending on your desired runtime, offering greater flexibility for long-duration backup in critical applications.
