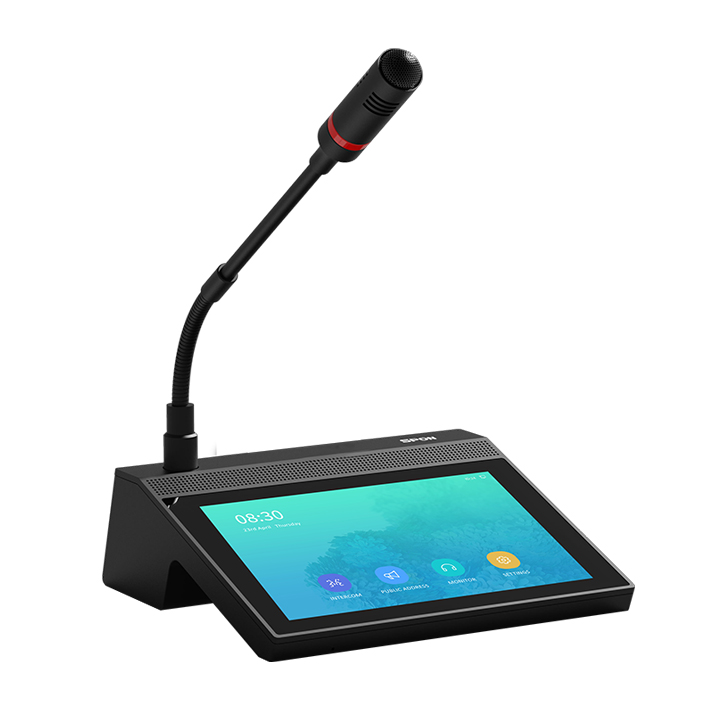

XC-9037N – Network Intercom Master Station

XC-9037N Network Intercom Master Station is a feature packed intercom solution built for corporate offices, schools, hospitals, and large facilities. Device features a high resolution (1200×800) 7-inch touchscreen display with an intuitive user interface. The device software has an instant PA feature for emergency situations which allows the operator to make a public announcement through all the connected terminals at once.

Operators can also broadcast audio files and pre-recorded messages and even stream Bluetooth to specific zones with the XC-9037N. The device supports full duplex communications for easy communication and with its cutting-edge mic, digital signal processor, and advanced noise reduction algorithms, users can communicate clearly and effectively without disturbances or interference.

The device comes with a USB port for audio broadcasts and an RJ 45 Ethernet connection for easy integration with existing systems.

Product Features

  • 7-inch high-resolution touchscreen display: Provides an intuitive and user-friendly interface
  • One-touch emergency broadcast: Enables quick broadcasting to all connected terminals
  • RJ45 Ethernet connection: Allows easy integration with existing network systems

Specifications



Category Specification
Power Supply DC 12 V / 1.5 A or PoE (IEEE 802.3af / 802.3at)
Standby Power Consumption ≤ 10 W
Audio Codec MP3, PCM, ADPCM
Audio Sampling & Bit Rate 8 kHz – 44.1 kHz, 16-bit, 8 kbps – 320 kbps
Built-in Speaker 3 W, 4 Ω
Signal-to-Noise Ratio > 82 dB
Frequency Response 40 Hz – 18 kHz
Network Transmission Rate 100 Mbps
Network Protocols TCP/IP, UDP, ARP, ICMP, IGMP, HTTP, SIP
Configuration Method Web interface or DevConfig tool
Display Screen 7-inch LCD touchscreen, 1280 × 800 resolution
Mounting Method Desktop installation
Installation Environment Dry indoor locations only
Operating Temperature 0 °C to +45 °C
Operating Humidity ≤ 90% RH (non-condensing)
Housing Material ABS
Colour Black
Product Dimensions 183.9 × 169.0 × 58.4 mm
Product Weight 0.75 kg
